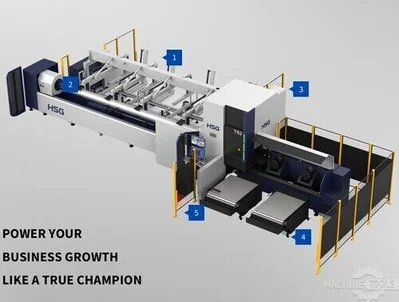

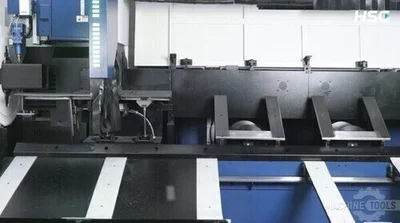

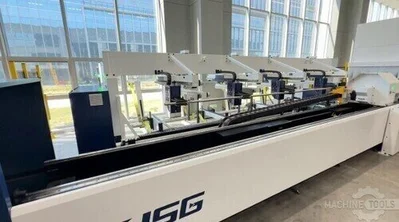

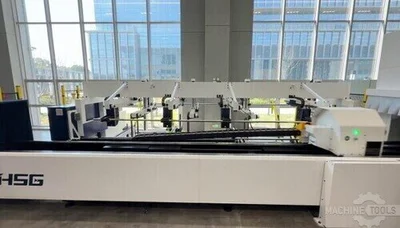

Brand – HSG Model – TS2 Type – Laser Cutters New – In Stock
Wattage: 6000 w
Control: CNC (HSG X)
Laser Power: 6kW Raycus Round Tube Range: Ø0.79″ – Ø10.75″ Square Tube Range: 0.79″ x 0.79″ – 8.66″ x 8.66″ Rectangular Tube: Up to 10″ diagonal Infeed Length Capacity: 39″ – 362″ Max Tube Weight: 660 lbs (approx. 22 lbs/ft) Tailing Length: ≥8.66″ Bevel Cutting Angle: ±45° (V & Y cuts) Max Cutting Speed: ~5512 in/min Chuck Speed: Up to 140 RPM Positioning Accuracy: ±0.002″ Repeatability: ±0.0012″
6kw Raycus Fiber Power Source HSG BEVEL Cutting Head Infeed Bundle Loader Seam Detection Unloading System HSG X Control System with Touchscreen Interface HSG TTN Nesting Software (supports all tube and profile shapes) 2 High-Speed Digital Smart Chucks with Auto-Centering Water Chiller Dust Collector (4-filter) Voltage Stabilizer Full Safety Package (Light Curtains, Enclosures) AC Cooling Room for Laser Cabinet Consumables Starter Kit (100 nozzles, 50 lenses, 30 ceramics)
