Designed with 3.18” spindle hole which is unique for 16” and 18” swing lathes. Due to its one piece casting machine base, it can support heavier cutting on large diameter materials. The large through hole allows most 3” diameter oil pipes to be machined.
| Lathe Type | Geared Head | Geared Head |
| Swing Over Bed | 18.5" | 469.9 mm |
| Distance Between Centers | 60" | 1,524 mm |
| Spindle Bore | 3.06" | 77.724 mm |
| Spindle Nose | D1-8 Camlock | D1-8 Camlock |
| Number Of Spindle Speeds | 12 | 12 |
| Range Of Speeds | Hi: 235-2,000 rpm; Low: 20-170 rpm | Hi: 235-2,000 rpm; Low: 20-170 rpm |
| Number of Inch Threads | 4-56 tpi, 36 | 4-56 tpi, 36 |
| Motor | 7.5 hp | 5.6 kW |
| Phase | 3 | 3 |
| Voltage | 230/460v | 230/460v |
| Dimensions | 8.69' x 2.65' x 4' | 8.69' x 2.65' x 4' |
| Weight | 4,500 lbs. | 4,500 lbs. |
*1-Phase Available
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

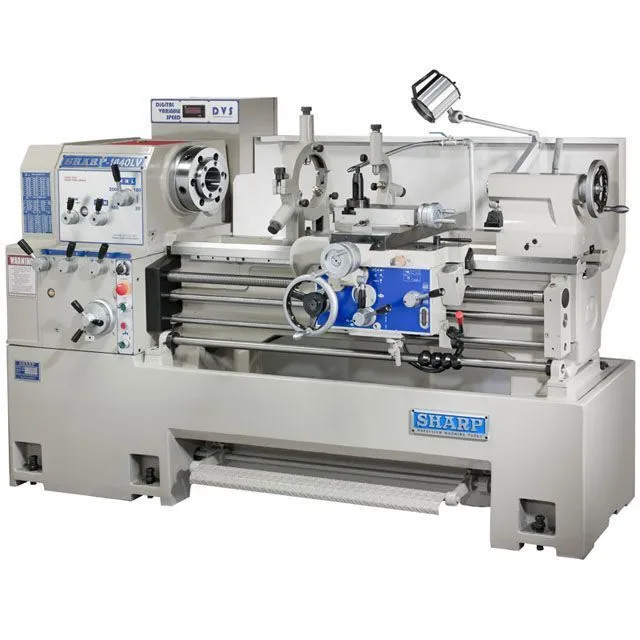

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
3-jaw 12" chuck
4-jaw 12" chuck
Chuck guard
Tool guard (at front of compound slide with limit switch)
Lead screw cover (full length, accordion style)
Safety cover at end of spindle
UL or CSA electrical components, UL spindle motor, CSA pump motor
