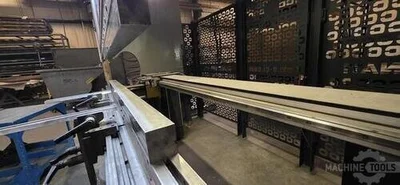

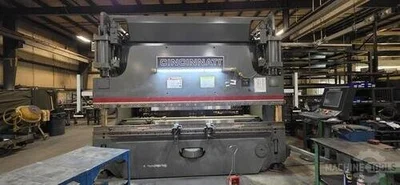

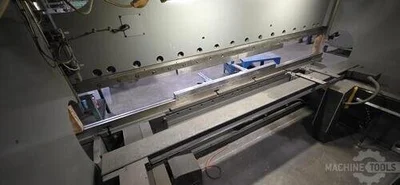

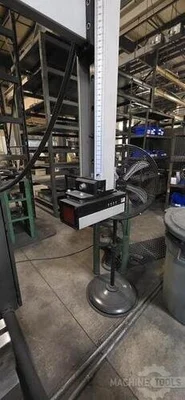

Brand – CINCINNATI Model – 135PF+10 Type – Press Brakes Year – 2015 Condition – Used – Excellent
Tonnage: 148.812 T
Overall Length: 12′
Between Housings: 10.5′
Stroke: 8″
# Axis: 6
Weight: 22,000

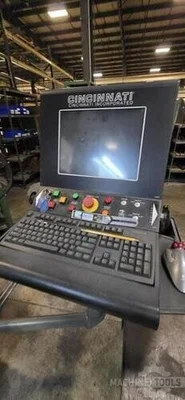

Control: CNC (CIncinnati)
Tonnage: 135 Ton Overall length bed/ram: 12’ Ram feedback type: Linear scale Ram depth stop style: Encoder Distance between housings: 10’ 6-1/4” Ram tilt adjustment: Powered Backgauge range: 24” Number of gauging axis: 5 Backgauge speed: 1,200 IPM Programmable R axis travel: 8” Number of backgauge fingers: 2 Ram Stroke Length: 14” Throat depth: 18” Clamping/Tooling style: American Crowning type: CNC Number of cylinders: 2 Ram Speeds Advance speed: 200 IPM variable Pressing speed: 55 IPM variable Return speed: 185 IPM variable Die holder type: Crowning CNC Bed height: 34” Bed cap width: 4-1/2” Main motor: 15 H.P. Weight: 22,000 Lbs. (est.)
135 Ton X 12’ Proform Series CNC Press Brake Cincinnati Windows Based 3-d Color Graphical Touch Screen CNC Control Bend Simulation Software Cincinnati Unfolder Module Programmable Z Axis On Backgauge Lazersafe Light Guarding Steel Rear Guarding On Back Of Machine Graphical Tool Library And Part Views (2) Fast Setup 15” Front Support Arms On 10’ Sliding Track CNC Bed Crowning
