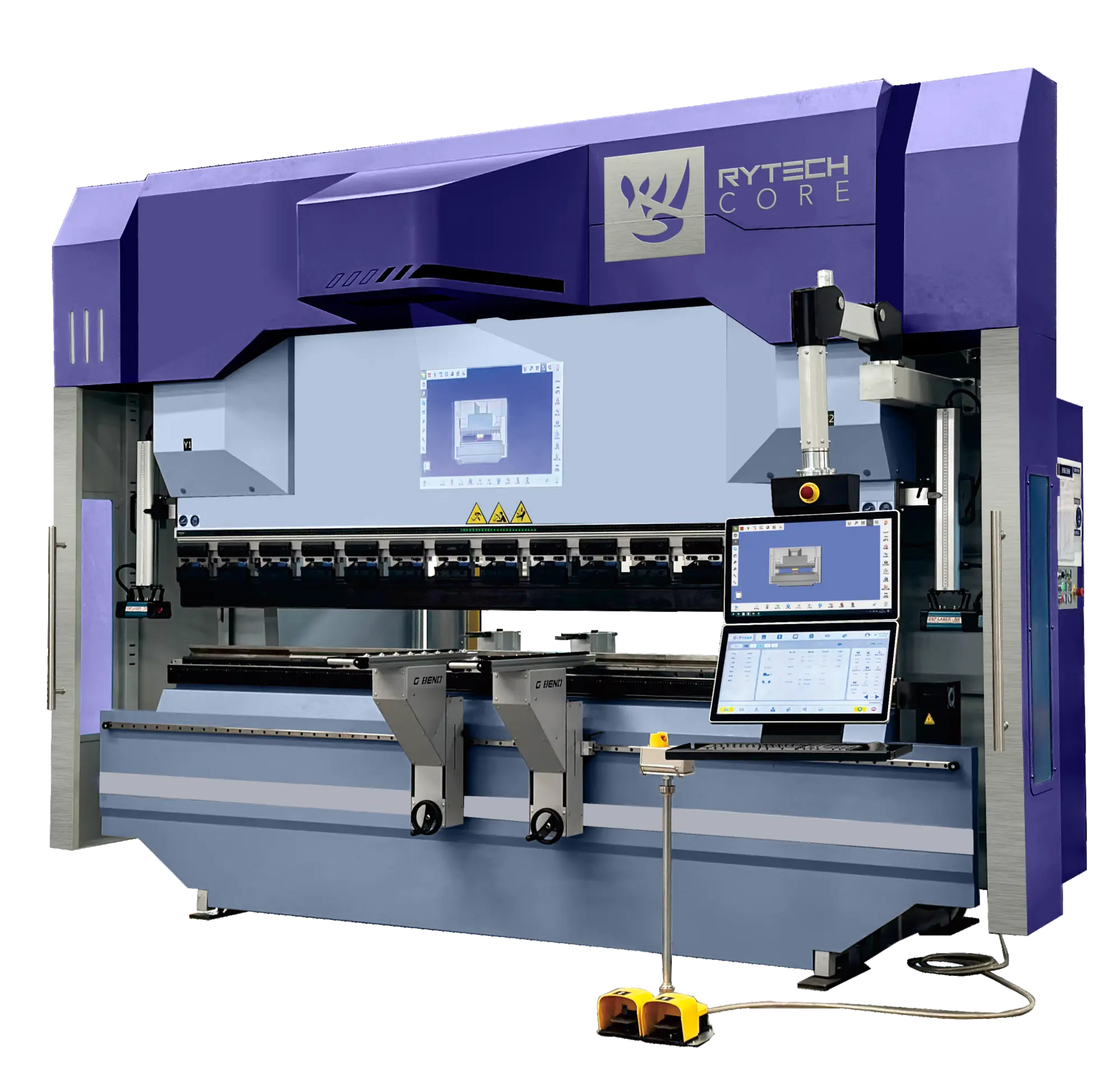

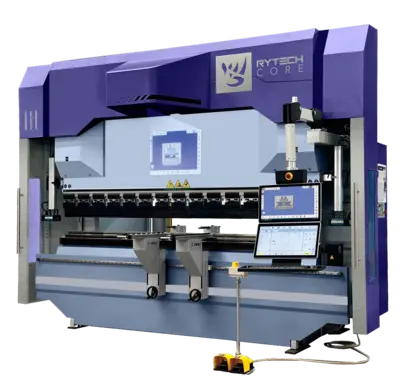

NEW RYTECH CORE PRECISION HYDRAULIC PRESS BRAKE
Overview
The RYTECH CORE Precision Hydraulic Press Brake delivers reliable, accurate bending performance for everyday metal fabrication. Featuring DELEM CNC controls, Reflex Deflection Compensation, Wave Style Mechanical Crowning, precision backgauge positioning, and quick-change tooling, CORE combines heavy-duty construction with efficient operation and dependable productivity.
Specs
Manufacturer: RYTECH
Model: CORE
Machine Type: Precision Hydraulic Press Brake
Available Models: 16 Configurations
Bending Capacity: 66.14–462.97 U.S. Tons
Usable Bending Length: 82.68"–240.16"
Working Length: 78.74"–236.22"
CNC Control: DELEM DA-53TX
Controlled Axes: Y1, Y2, X, R
Backgauge: GHP-4 Precision Backgauge
Crowning System: Wave Style Mechanical Crowning
Deflection Compensation: Reflex Deflection Compensation
Hydraulic System: HAWE
Upper Tool Clamping: European Quick-Release / KYOKKO
Lower Tool Clamping: Manual Eurostyle
Safety System: DSP Laser Safety Protection
Electrical Requirements: 480V, 3-Phase, 60 Hz
Equipped With
DELEM DA-53TX CNC Control With Double Screen
Y1, Y2, X & R Controlled Axes
Reflex Deflection Compensation System
Wave Style Mechanical Crowning
GHP-4 Precision Backgauge
2-Axis Backgauge Configuration (X, R)
Precision Rack-and-Pinion Backgauge Drive
Dual Linear Guide Rails
Two Rear Backgauge Fingers
European Quick-Release Upper Tool Clamping
Manual Single-Side KYOKKO Clamping
Eurostyle Lower Die Clamping System
HAWE Hydraulic Valve Group
Front Support System
DSP Laser Safety Protection
Dedicated Safety PLC Controls
Side & Rear Safety Guarding
Triple-Point Hydraulic Monitoring
480V, 3-Phase, 60 Hz Electrical System
