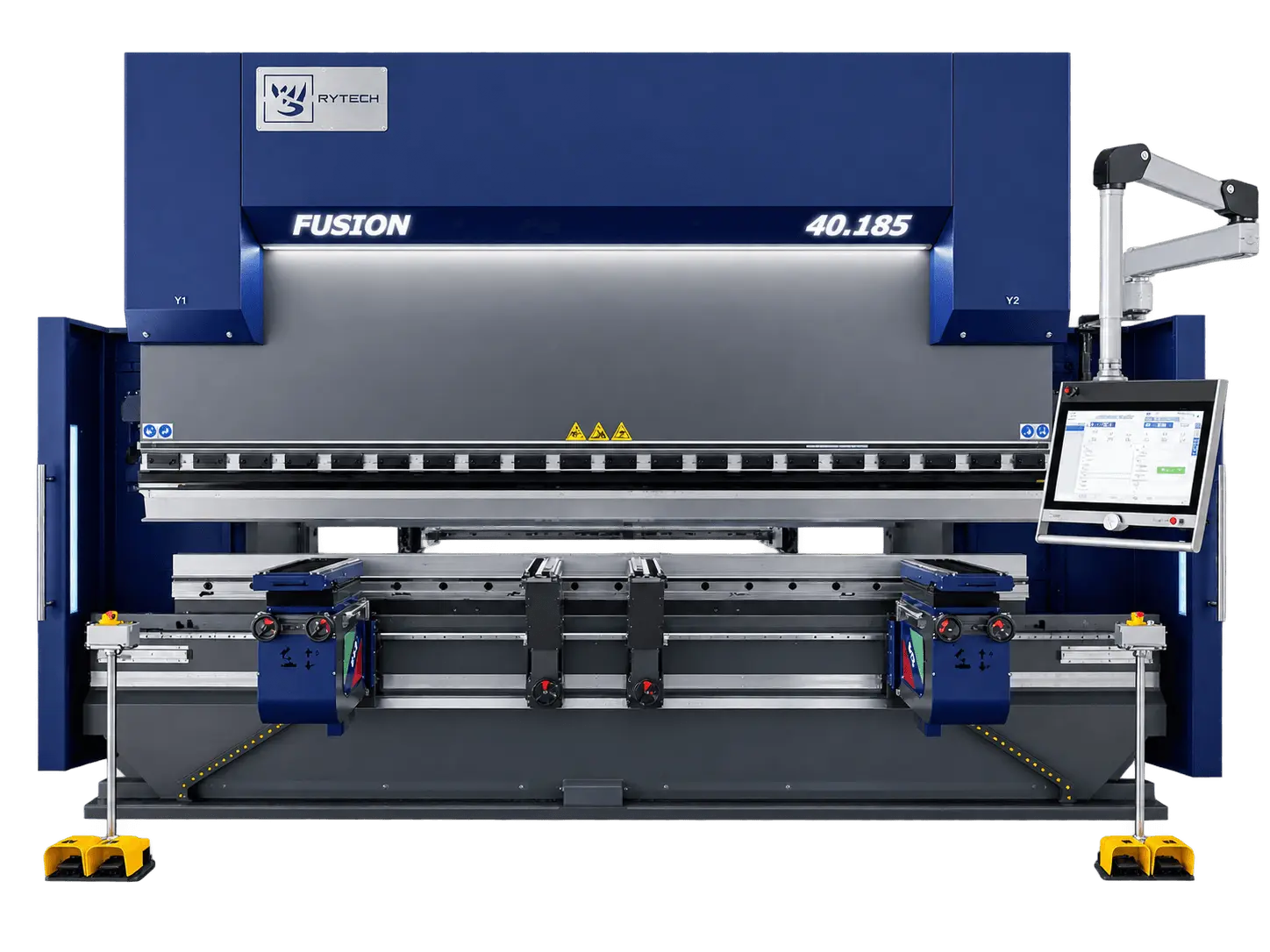

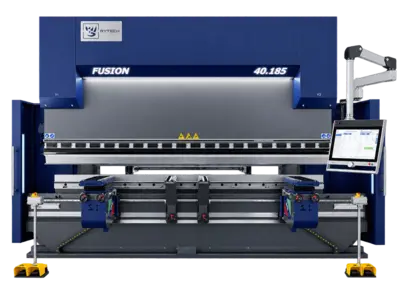

NEW RYTECH FUSION HYBRID PERFORMANCE
Overview
The RYTECH FUSION Hybrid Performance Press Brake delivers high-speed, precision bending for demanding metal fabrication applications. Featuring DELEM DA-66S CNC controls, real-time frame deflection compensation, smart hydraulic crowning, and a precision multi-axis backgauge, FUSION combines advanced technology, reliable performance, and exceptional bending accuracy.
Specs
Manufacturer: RYTECH
Model: FUSION
Machine Type: Hybrid Performance Press Brake
Available Models: 11 Configurations
Bending Capacity: 137.79–363.76 U.S. Tons
Usable Bending Length: 102.36"–240.16"
Working Length: 98.43"–236.22"
Cylinder Stroke: 11.81"
Daylight: 19.69"
Throat Depth: 19.69"
Approaching Speed: 354.33–472.44 IPM
Working Speed: 0–28.35 IPM, Depending on Model
Return Speed: 295.28–389.76 IPM
Motor Power: 29.50–42.91 HP
X-Axis Stroke: 23.62"–31.50"
R-Axis Stroke: 7.87"
X-Axis Velocity: 944.88–1,417.32 IPM
R-Axis Velocity: 354.33–590.55 IPM
Z-Axis Velocity: 1,889.76 IPM
Machine Weight: 19,842–63,934 lbs.
Electrical Requirements: 480V, 3-Phase, 60 Hz
Equipped With
DELEM DA-66S CNC Control
Y1, Y2, X, R, Z1, Z2 & V Controlled Axes
Real-Time Frame Deflection Compensation
Smart Hydraulic Crowning System
4-Axis Precision Backgauge
Rack-and-Pinion Backgauge Drive
Dual Guide Rail Support
Two Rear Backgauge Fingers
HAWE Hydraulic System
KYOKKO Manual European Upper Tool Clamping
Manual European Lower Tool Clamping
SP Front Support Arms
DSP AP+MCS Laser Safety System
Side & Rear Safety Guarding
LED Visual Positioning System
Air Conditioner & Heat Exchanger
480V, 3-Phase, 60 Hz Electrical System
