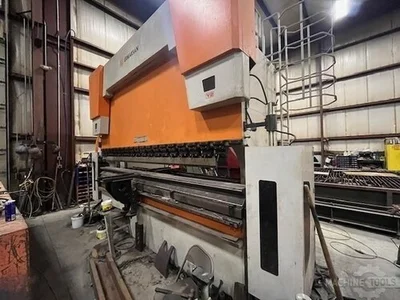

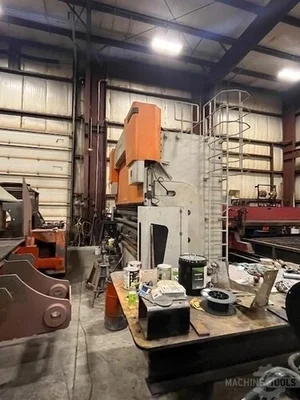

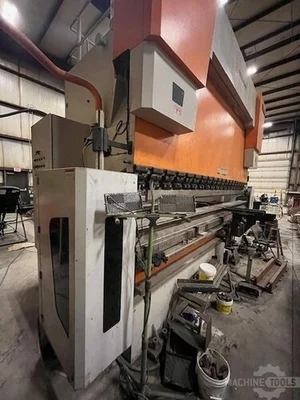

USED ERMAKSAN POWER-BEND FALCON 4270-500

Brand – ERMAKSAN Model – POWER-BEND FALCON 4270-500 Type – Press Brakes Condition – Used – Excellent

Tonnage: 550 T
Type: HYD
Overall Length: 14′
Between Housings: 11.81′
Stroke: 14.76″
# Axis: 4
Dimensions: 220″ L x 104″ W x 152″ H
Weight: 72661 lbs

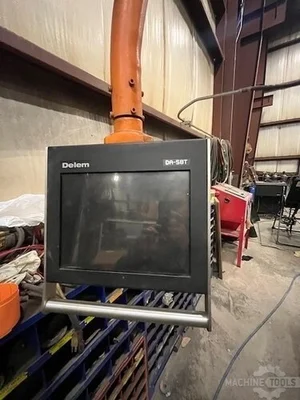

Control: CNC (Delem DA-58T)
BENDING LENGTH: 168.11″ MAX. POWER: 550 US Tons MAX.BENDING CAPACITY (59738 psi): 0.63″ MAX.BENDING CAPACITY (73974 psi): 0.55″ MAX.BENDING CAPACITY (81087 psi): 0.55″ MAX.BENDING CAPACITY (89622 psi): 0.51″ MAX.BENDING CAPACITY (99580 psi): 0.47″ AXIS NUMBER OF MACHINE: Y1,Y2,X,R FREE DOWN SPEED: 3.15 in/s BENDING SPEED: 0.29 in/s RETURN BACK SPEED: 2.56 in/s STROKE: ( Y1 , Y2 ): 14.76″ BACK GAUGE STROKE ( X1 AXIS ): 31.50″ BACK GAUGE STROKE ( R1 AXIS ): 9.84″ DISTANCE BETWEEN HOUSING: 141.73″ CROWNING: MOTORIZED THROAT DEPTH: 20.08″ TABLE HEIGHT: 43.31″ TABLE WIDTH: 9.45″ DAYLIGHT: 26.57″ PLANT VOLTAGE: 230 or 460V IP: 54 MAIN MOTOR: 40HP BACK GAUGE MOTORS (X,R): 2×4,78Nm PLANT TEMPERATURE: 0-50ºC MAX. NOISE: 70 dB OIL CAPACITY: 132 US Gallons MAX. PRESSURE: 3911 psi MACHINE LENGTH: 220″ MACHINE WIDTH: 104″ MACHINE HEIGHT: 152″ WEIGHT: 72661lbs

Delem DA-58T Control CNC Crowning 4-Axis Backgauge,
