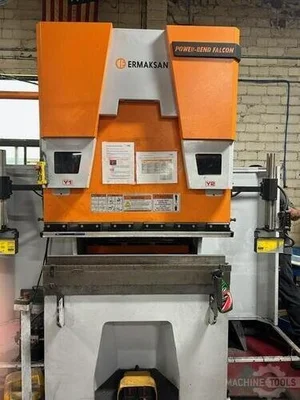

USED ERMAKSAN POWER BEND FALCON 1270-60

Brand – ERMAKSAN

Tonnage: 72.752 T
Type: HYD
Overall Length: 4.17′
Between Housings: 39.4″
Stroke: 10.8″
# Axis: 4
Dimensions: 88.6″ x 77.2″ x 108.3″
Weight: 9200lbs
Control: CNC (Delem 58T)

ERMAK POWER-BEND PRO SEATER 1270-60 (66 Ton x 50”) DELEM DA-58T Touch Screen Control Delem Profile T Offline Included 4 Axis (Y1, Y2, X, R)  Heidenhain® Linear Scales: +/- 0.0002” Resolution; +/- 0.0004” Repeatability – Standard Tooling Package: Promecam-Style Quick Release Tool Clamps (American, European) o American Precision Ground & Hardened Gooseneck Punch & 4-Way V-Die American Die Riser Bock, 60mm Euro Tool Holder 19.7” Servo Drive Ballscrew (X-Axis) – Photocell (CAT .04) Rear Guard Fiessler / W2000 Sick Interlocking Side Guards with Safety Switch  Hoerbiger Hydraulic Valve System Siemens Electric System 230 or 460 V 60/3 Electrical RAL 7035, RAL 9007 Colors English Labels & Manuals One Year (or 2,080 Hours) Parts & Labor (on Complex Assemblies) Warranty Included MTTS Machine Start-Up & Training, One (1) Day On-Site Included PRO-SEATER PACKAGE UPGRADES INCLUDED! Knee Gap Operator Work Station, Double Foot Pedal Collapsable Front and (2) Side Work Tables Articulating ControL Arm Servo Motor, R-Axis (9.8” Travel) Ram-Mounted Safety Option (AKAS)
