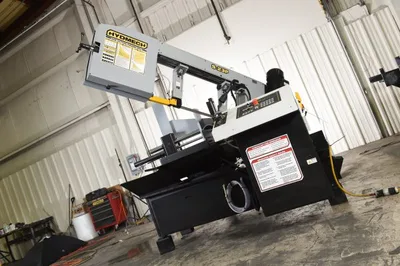

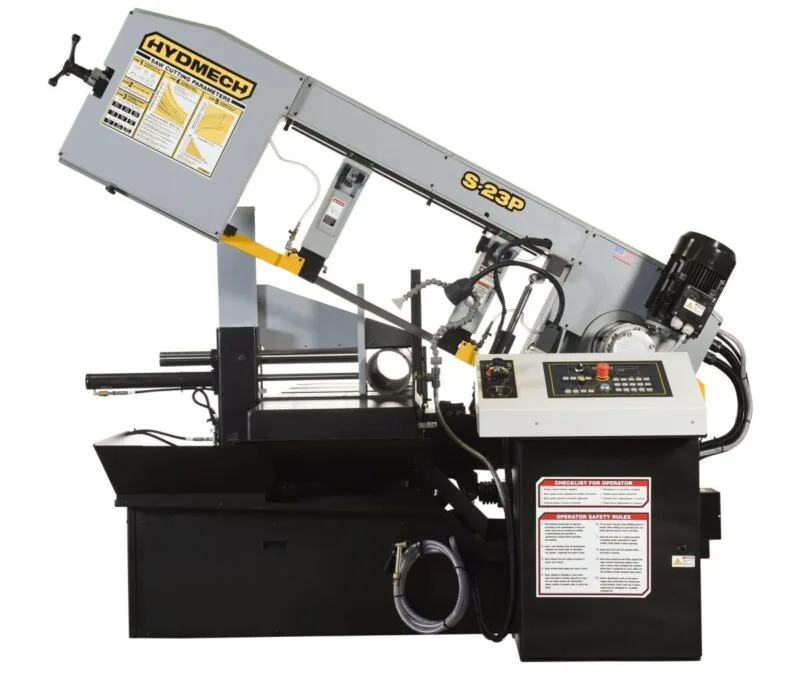

USED HYDMECH S-23P

The S-23P is a semi-automatic horizontal pivot band saw providing exceptional miter cutting capability for light to medium duty applications.

Capacity: Round
90°: 16″
45°: 14″
30°: 9 1/2″
Blade Size: 1 1/4” x 16’ 10”

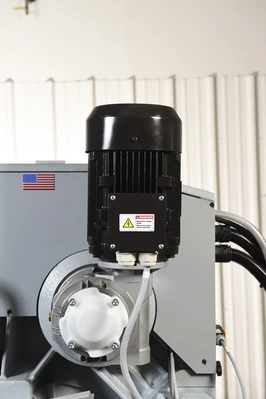

Blade Drive: 8.8 HP VFD
Machine Voltage: 480 v (all other voltages require optional transformer)
Blade Speed: 75-350 SFM
Coolant Tank Capacity: 9 Gallons
Work Load: 5,000 lbs.
Machine Weight: 2,900 lbs.
Table Height: 33”
Dimensions (w x l x h): 101” x 80” x 61”
