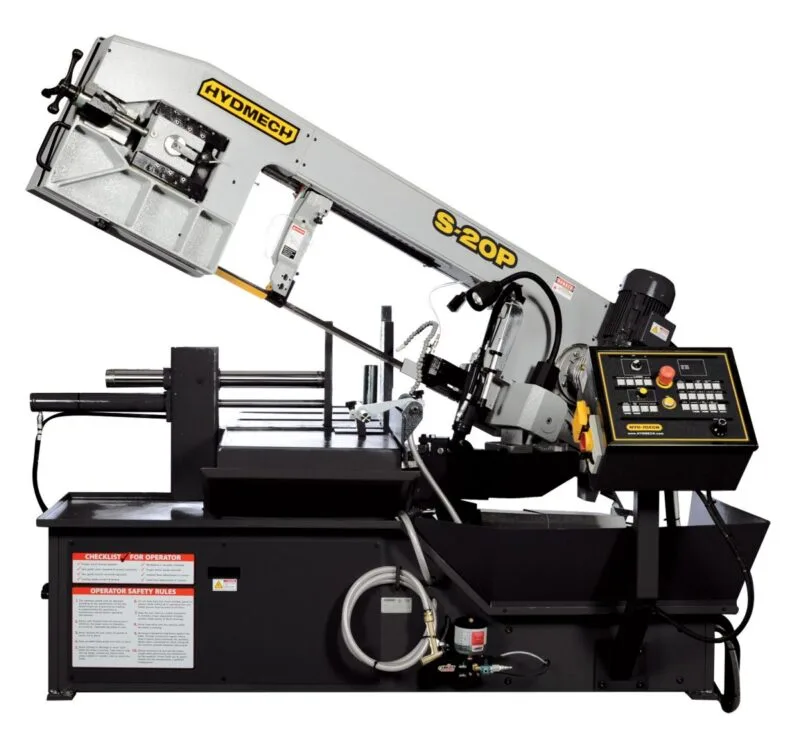

The S-20P semi-automatic scissor style band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications.
Capacity: Round
90°: 13″
45°: 12″
30°: 8 1/2″
Blade Size: 1” x 14’ 10”

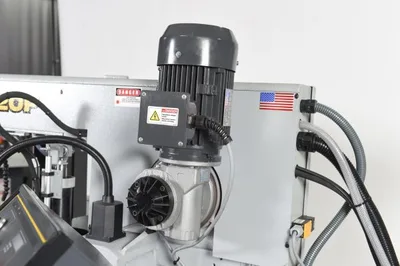

Blade Drive: 3 HP VFD
Machine Voltage: 480 v (all other voltages require optional transformer)
Blade Speed: 45-330 SFM
Coolant Tank Capacity: 6 Gallons
Work Load: 5,000 lbs.
Machine Weight: 2,500 lbs.
Table Height: 31”
Dimensions (w x l x h): 92” x 75” x 52”
