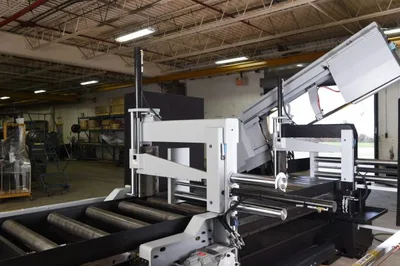

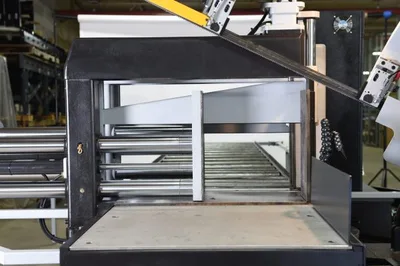

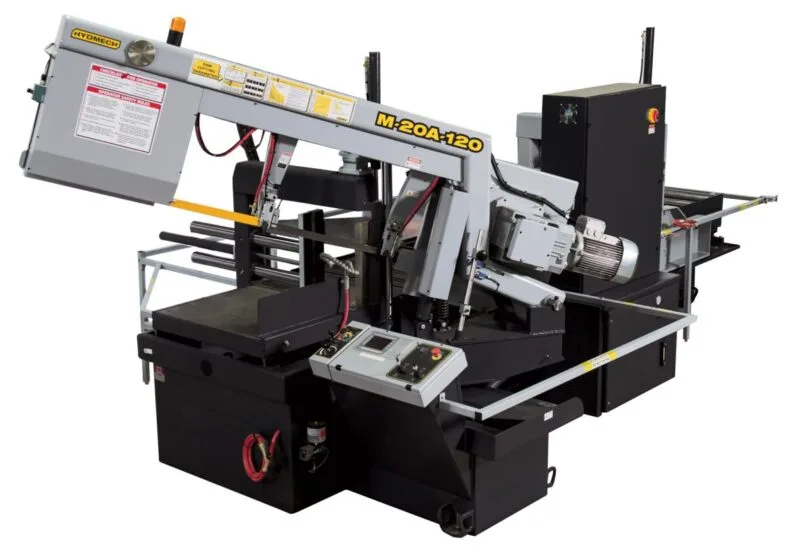

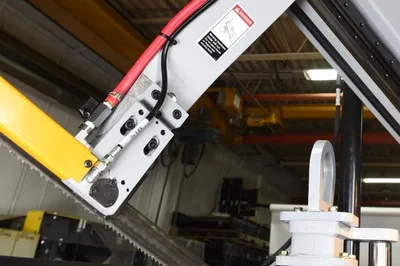

USED HYDMECH M20A-120

The M-20A-120 is a heavy-duty automatic horizontal pivot band saw, its ability to miter cut from 90 to 60 degrees makes it an excellent machine for large fabrication jobs.

Capacity: Round
90°: 20″
45°: 20″
30°: 14″
Blade Size: 1 1/2” x 20’ 6”
Blade Drive: 10 HP VFD
Machine Voltage: 480 v (all other voltages require optional transformer)
Blade Speed: 50-350 SFM
Coolant Tank Capacity: 9 Gallons
Work Load: 8,000 lbs.
Machine Weight: 12,700 lbs.
Table Height: 35”
Dimensions (w x l x h): 129” x 210” x 110”
