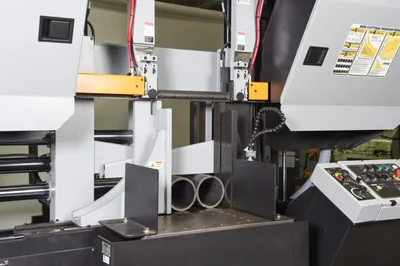

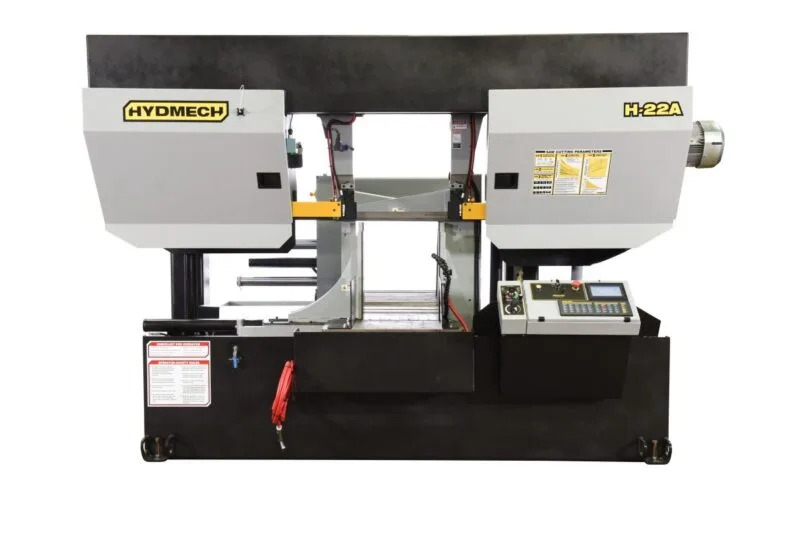

The H-22A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.
Capacity: Round
90°: 22″ Canted: 20″
Blade Size: 2” x 22’ 6”
Blade Drive: 10 HP VFD
Machine Voltage: 480 v (all other voltages require optional transformer)
Blade Speed: 40-300 SFM
Automatic Multi-Indexing: 0-34″
Machine Weight: 12,500 lbs.
Table Height: 31” Canted:35″
Dimensions (w x l x h): 141” x 88” x 92”
