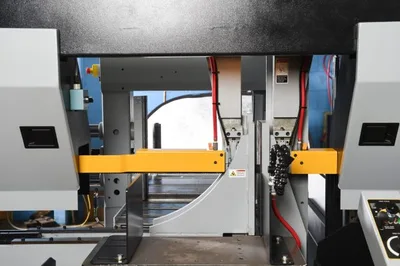

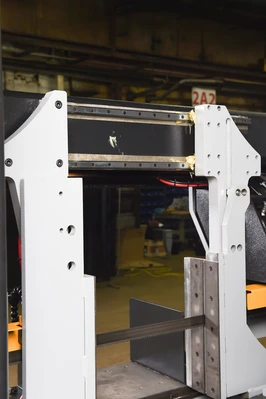

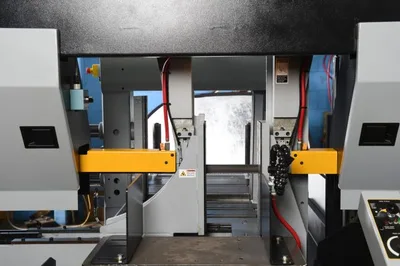

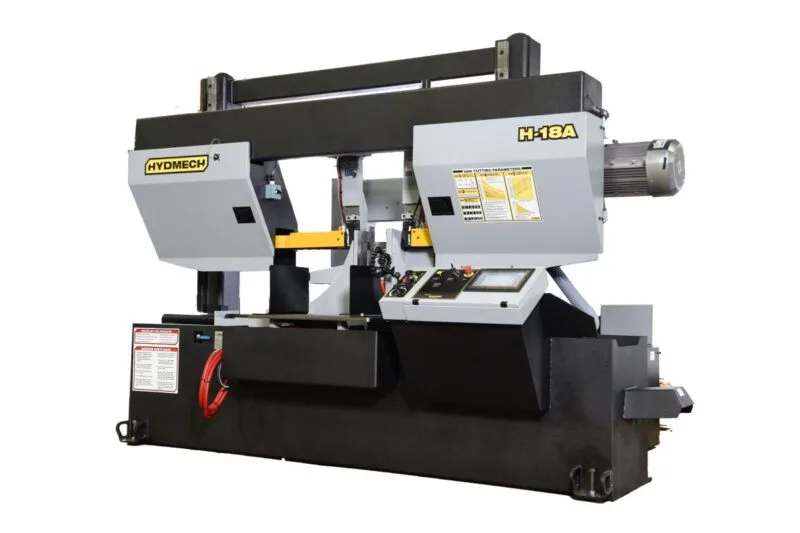

The H-18A is an automatic horizontal band saw providing accurate 90° metal cutting for medium to heavy-duty applications.
Capacity: Round
90°: 18″
Blade Size: 1 1/2” x 19’ 2”
Blade Drive: 10 HP VFD
Machine Voltage: 480 v (all other voltages require optional transformer)
Blade Speed: 50-350 SFM
Automatic Multi-Indexing: 0-34″
Coolant Tank Capacity: 30 gallons
Machine Weight: 8,500 lbs.
Table Height: 31”
Dimensions (w x l x h): 127” x 88” x 92”
