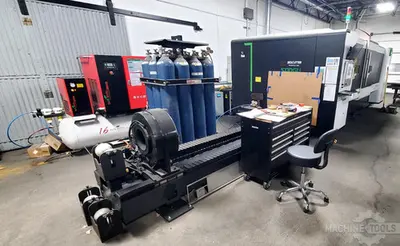

Brand: BESCUTTER Model: FLY PRO 3015 Type: Laser Cutters Control: CNC Year: 2023 Condition: Used – Excellent
Standard working area 10′ x 5′ (3050 x 1550 mm) Optional working area 13′ x 6.5′ (4000 x 2000 mm) / 20′ x 6.5′ (6100 x 2050 mm) / 26′ x 6.5′ (8000 x 2000 mm) Optional Laser Wattage 1500W / 3000W / 6000W X-axis distance 120″ (3050 mm) Y-axis distance 61″ (1550 mm) Tube X1-axis distance 59″ (1500 mm) Tube A, B axis distance Infinite rotation Tube diameter Standard: 0.78″–8.66″ (20–220 mm) Z-axis distance 11.8″ (300 mm) X, Y two-axis coordinated positioning speed (MAX) 140 m/min Positioning acceleration (MAX) 1.5 G Positioning accuracy ±0.05 mm/m Re-positioning accuracy ±0.02 mm Maximum sheet load weight 700 kg (1543 lbs) Maximum pipe load weight Auto-loading: 100 kg (220 lbs) / Manual-loading: 200 kg (440 lbs) Laser resonator IPG Laser head Raytools: 1.5–4 KW / Precitec: 6 KW Controlling system Cypcut X-Y-Z Servo Motors: X-2x2900W; Y-1x850W; Z-1x750W Machine body weight Approximately 7000 kg (15,432 lbs) Pipe rotation weight Approximately 1000 kg (2204 lbs) Exchanging shuttle tables & auxiliary weight Approximately 2500 kg (5511 lbs) Dimension no pipe cutting: 350″ x 118″ x 80″ (8900 x 3000 x 2050 mm) Dimension with pipe cutting: 429″ x 142″ x 80″ (10,900 x 3600 x 2050 mm)
