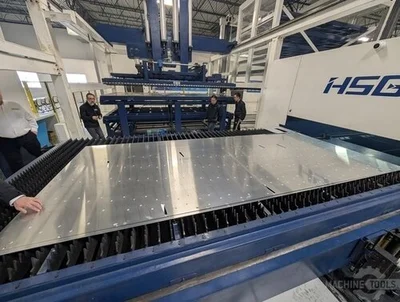

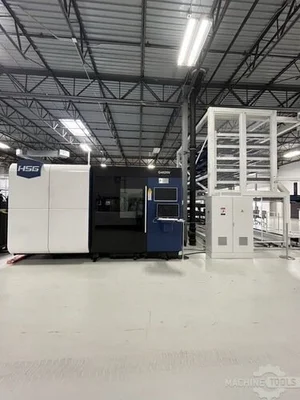

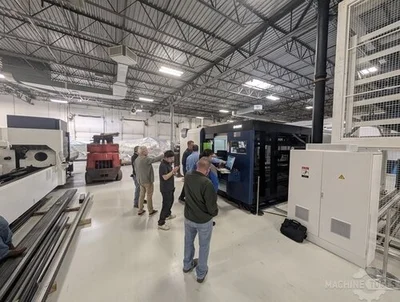

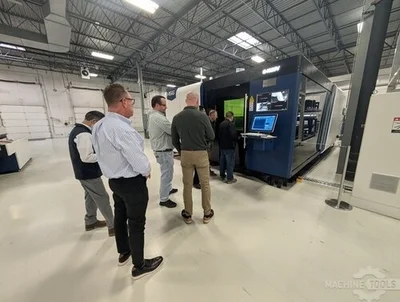

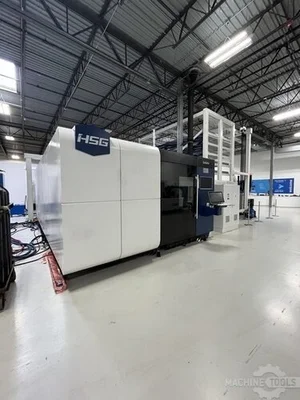

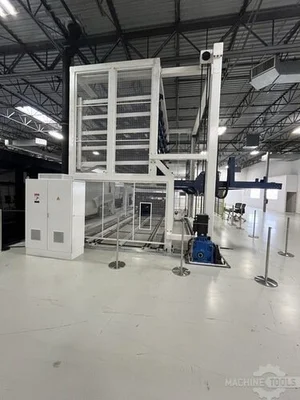

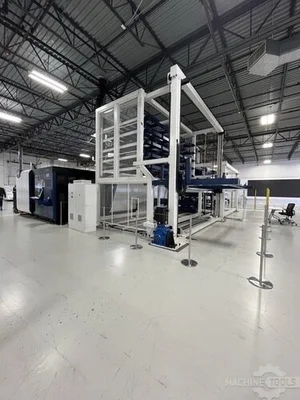

USED HSG G4020V 6G 30KW + STORE 4020 6

Brand – HSG Model – G4020V 6G 30KW + STORE 4020 6 Type – Laser Cutters Condition – New In-Stock

Sheet-W: 78.74″
Sheet-L: 157.48″
Wattage: 30 kw
IPM: 11811 ipm
X: 6.74′
Y: 13.12′
Z: 5.9″
Dimensions: 12400×4430×2865

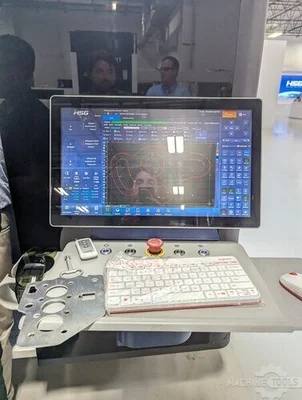

Control: CNC (HSG-X Bus Control System)

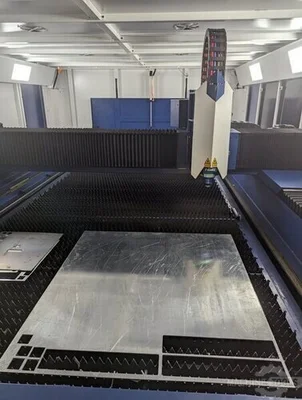

Cutting Area (Length × Width): 160 × 80.3 in X-Axis Travel: 80.3 in Y-Axis Travel: 160 in Z-Axis Travel: 5.9 in X/Y Axis Positioning Accuracy: ±0.0012 in Max. Linkage Speed: 984 ft/min Max. Linkage Acceleration: 6 G Max. Loading Weight: 11,023 lbs Machine Overall Dimensions (L × W × H): 488.2 × 174.4 × 112.8 in Voltage: 380 V Frequency: 60 Hz

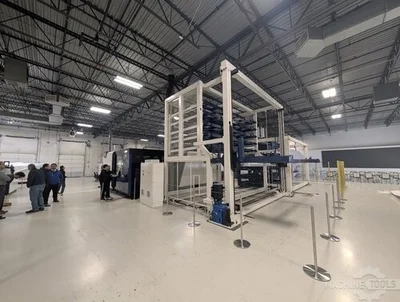

Laser Source: 30kw RAYCUS Cutting Head: HSG BOCHU Control system (AlphaT Plus) Machine Bed: HSG Automation: Dual Pallet + STORE 4020 6 Shelf Tower Automation Standard Accessories Water chiller Dust collector Transformer&Voltage Stabilizer OD6 laser protection glass Safety light curtains Camera Nesting Software AC room for laser
