Brand – BESCUTTER
Sheet-W: 5′
Sheet-L: 10′
Wattage: 6000 w
IPM: 5512 ipm
X: 61″
Y: 120″
Z: 3.93″
Dimensions: 350″x 118″ x 83″
Weight: 20945 lbs
Control: CNC (CypCut)
Standard working area 61″ x 120″ (3050 x 1550 mm) X, Y, Z axis distance 61″ (3050 mm)/120″ (1550 mm)/3.93″ (100 mm) X, Y Two-axis coordinated positioning speed (MAX) 140 m/min Positioning acceleration (MAX) 1.4 G Positioning accuracy ±0.05 mm/m Re-positioning accuracy ±0.02 mm Maximum load weight 1543 lbs Laser resonator IPG Laser head Raytools (Precitec optional) Controlling System CypCut (Beckhoff optional) X-Y-Z Servo Motors X-2x2900W; Y- 1x850W ; Z-1x750W Machine Weight 20945 lbs (9500 kg) Dimensions 350″x 118″ x 83″ (8900 x 3000 x 2100 mm)

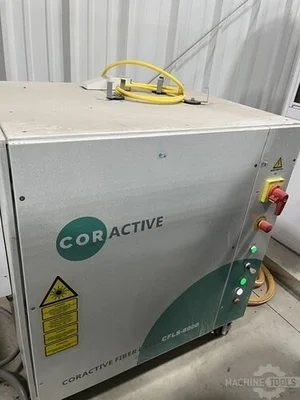

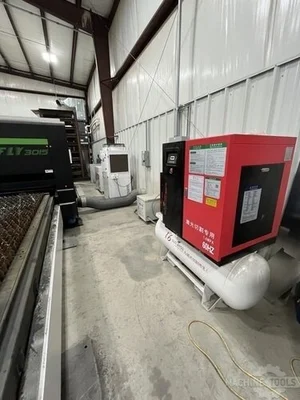

Coractive CFLS-6000 Power Source Gun Aiyou 53CFM Air Compressor Chiller Auto Exchanging Shuttle Table,
