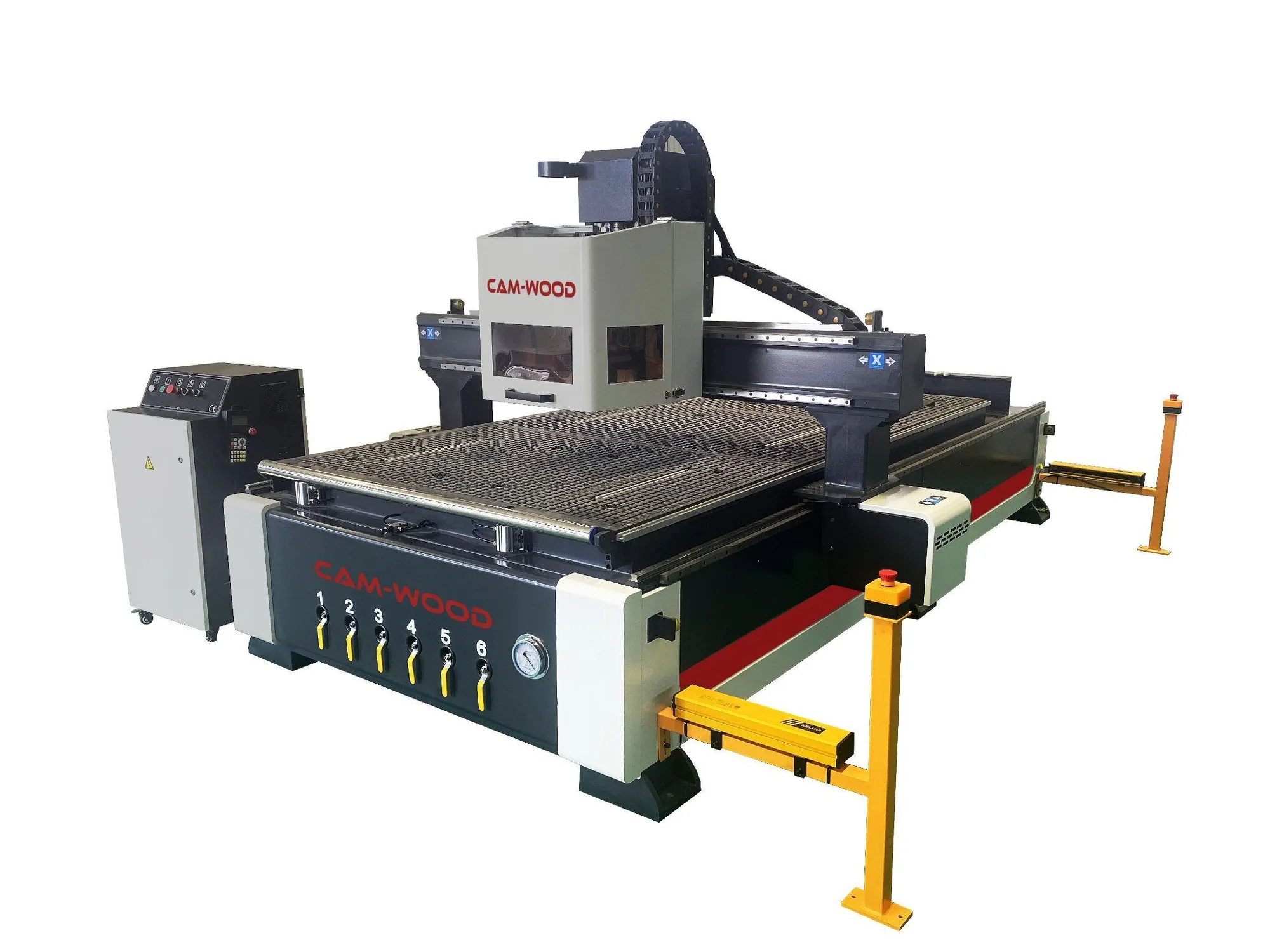

NEW Castaly Industries Rapid 510-8R

Machine Type: CNC Router w/ATC
Machine Style: Flat Table - Vacuum
Machine Model: Rapid-510-8R
Elect / Voltage: 230V, 60 Cy, 3 PH
FOB / Region: West Coast / CA
Overview Description:
• 5” x 10” (1,600 mm x 3,200 mm) Phenolic Matrix Grid Vacuum Table with (6)
independent zones
• 12 HP (9.6 kW) CC Air-cooled Router Spindle, 6,000-24,000 rpm/min
• Industrial Grade “DPS NK 105" CNC controller with LCD display module
• 8-position Linear ATC station mounted on the rear
• “Lead shine” 850w Servo drives and motors with Shimpo gear boxes.
• Bridge Style Overhead Gantry
• Travels via 1” HWIN linear rails with pre-loaded bearings.
• Driven by dual inclined-toothed helical rack and pinion rails and motors.
• Z-axis movement via 1” diameter ball & screw with preloaded bearings
• 2,350 IPM max. traverse speed; 1,100 IPM max. working speed.
Castaly
Fulfilling All Your Machinery Needs
Castaly Industries Corp.: 637 Vineland Avenue | La Puente, CA 91746 | Tel: 626.968.6330 | Fax: 626.968.6333
Detailed Description:
Machine Bed/Base:
The Welded & Structurally Engineered machine base provides a solid foundation for superior cut quality;
the entire frame is stress relieved and heat treated.
The Moving Gantry Bridge travels in the X- & Y-axis via inclined helical rack & pinion on 1" (25 mm) thick,
hardened & precision ground "HIWIN" rectangle linear guide ways with preloaded bearings, giving extra
smooth movement, high speed traverse, and accurate cutting.
The Tool Gantry Movement for the vertical Z-axis travels on a 1" (25.4 mm) diameter "HIWIN" precision
ball-screw with preloaded bearings for smooth & consistent movement.
CNC Control & Operator Interface:
Industrial Grade "WEIHONG DPS NK 105" CNC controller with LCD display module; includes integrating
ARM11 processor, RAM 128M, Speed 600M, Flash 256M; setup to accept standard G-code
programming formats along with conversational applications. DXF files can be imported, modified, and
edited. PC directly stores all part programs in a text edible file. Designed with superior 3-D cutting
capability. Compatible with virtually all CAD/CAM programming software on the market.
Working Table:
63" (1,600 mm) x 126" (3,200 mm) x 7.75" (197 mm) phenolic matrix grid table.
(6) Independent vacuum zones
(4) Pneumatic positioning pins
Axes Travel Range & Feed Speed:
Max Traverse Speeds: 2,350 IPM
Max Working Speed: 1,100 IPM.
"Lead shine" AC 850w Servo drives & motors power all axes’ movements.
Routing & Machining:
(1) 12 HP (9 kW) Air cooled Router Spindle with: ISO 30 Adaptor, variable speeds 6,000 to 24,000 RPM
(1) 8-Position Linear ATC (automatic tool changer), mounted on the rear.
Included Features
11 kW Inverter.
Manual lubrication device.
Schneider electronic components.
Optional (not included):
10 -11 HP Vacuum Pump.
CAD/CAM Drawing Software.
Machine Specs:
Machine power supply is wired for 220 Volts, 60 Cy, 3-Phase, 52 Amps.
Machine weighs approx. 3,960 lbs.
Machine air consumption at 90 PSI is approx. 15 CFM.
The Rapid-510-8R is an above entry level machine that is fully capable of handling your diverse parts!

training and installation not included

MSRP listed
Contact us for best pricing and availability
Financing available
