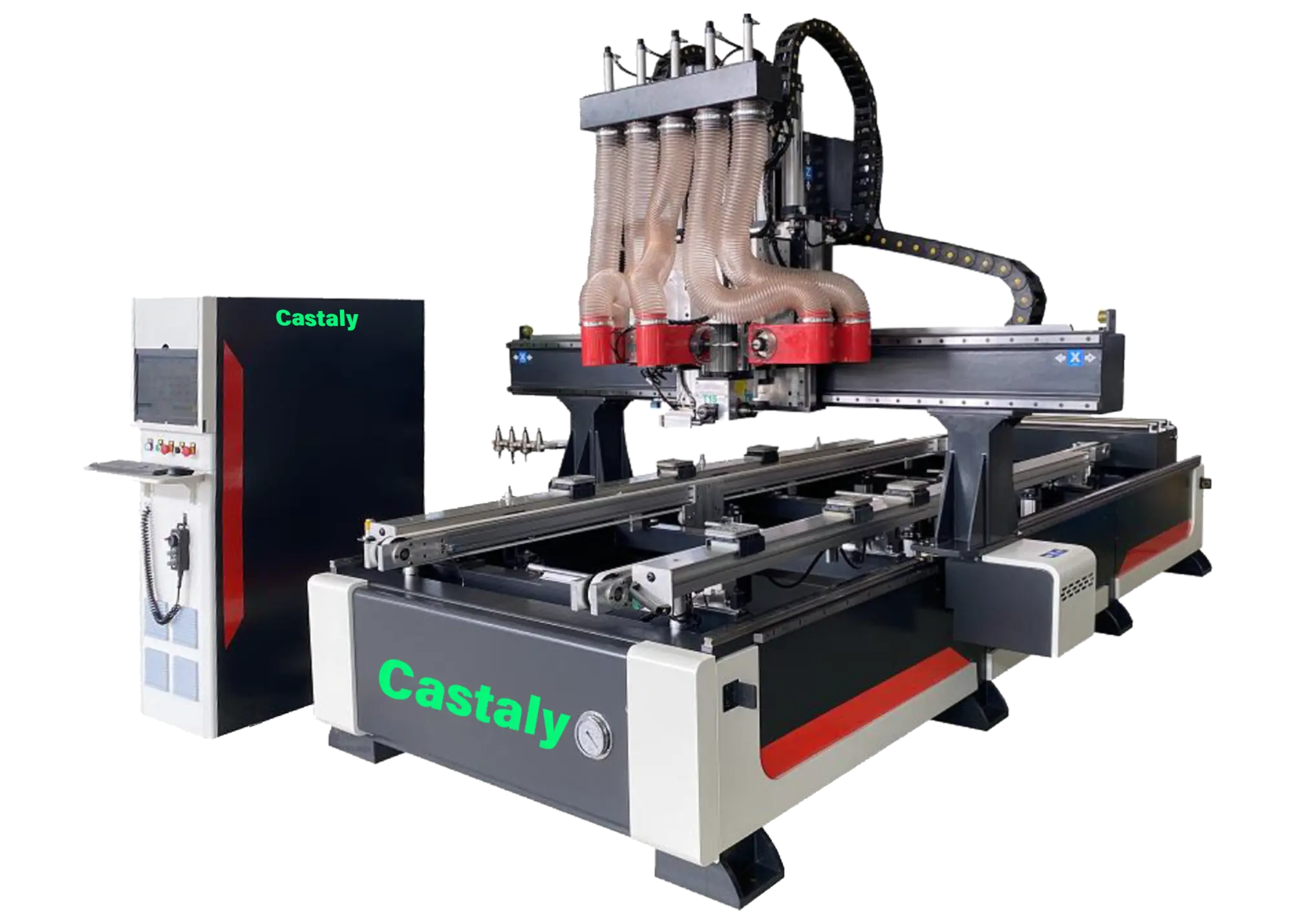

NEW Castaly Industries ARES CNC Feed Through Door Processing Machine Center

Distinctive design for Door Pre-Hang Processing
• All the 5-side Project Processing
• Automatic Feed Through (Options with Auto Loading and Out-Feeding)
• Hinge Face Milling, Screw Hole Drilling
• Lock Bore Drilling
• Latch Face Milling, Latch Bore Drilling
General Spec
1. Machine Gantry X Axis square rails Parallel vertical accuracy 0.001” (0.02mm)
2. Y Axis square rails Parallel vertical accuracy 0.001” (0.02mm)
3. Z Axis ball screw Parallel vertical accuracy 0.001” (0.02m)
4. Machine Re-position accuracy 0.001” (0.02mm)
5. Machine working accuracy 0.002” (0.5mm)
6. Grating ruler travel accuracy 0.002” (0.05mm)
Castaly’s Woodworking CNC Machine are perfect for:
❖ Three-dimensional wood processing
❖ Cupboard doors
❖ Wooden doors
❖ Window processing
❖ Video game cabinets
❖ Door Lite Cutting
❖ Steel Door processing
Features
❖ DSP CNC controller is setup to accept standard G-code programming formats along with on
board conversational applications.
❖ Optional CAD/CAM system can create and edit part programs then send to machine for easy
cutting. DXF files can imported, modified, and edited from here to create a G-code.
❖ Horizontal and vertical spindle for top and side stock processing
❖ Machine designed ready for 3-D cutting usage and superior performance.
❖ Moving gantry construction for space saving.
❖ The rigid steel frame construction has been stressed relieved prior to finish machining to
provide repeatability and accuracy.
❖ Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool
changes.
❖ Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to
ensure maximum rapid traverse and precision.
❖ The X & Y axis equipped with a precision rack & pinion driving system. The Z axis utilizes a
ball screw assembly complete with the pre-loaded and ground screw for long life and optimum
accuracy.
MSRP listed
Contact us for best pricing and availability
Financing available
