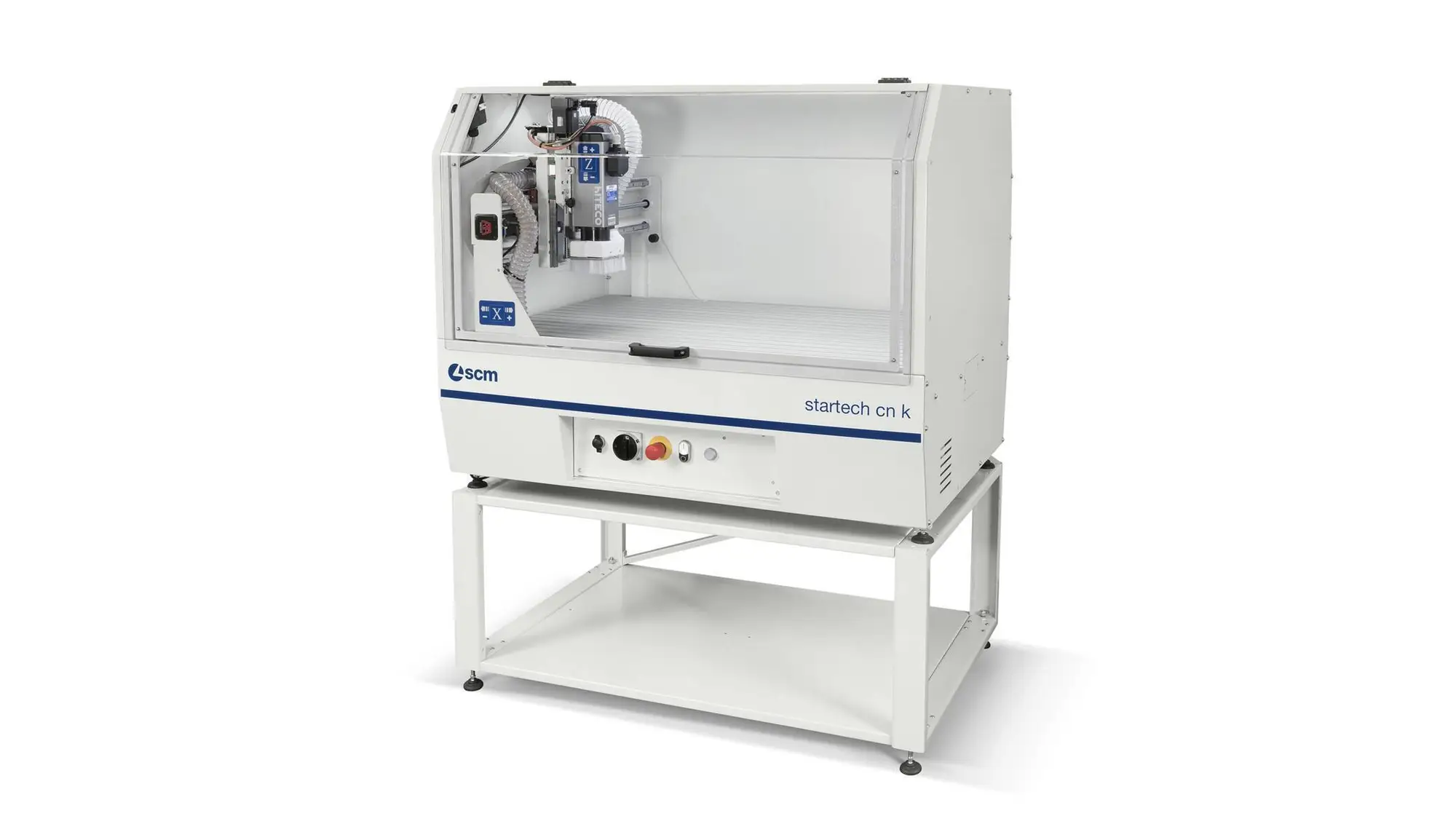

Compact 3-axis machining center ideal for all types of milling, decorations, engraving, signboard creation and 3D models prototyping.
Advantages
Maximum safety
The integral cabin with internal LED lighting ensures protection for the operator and keeps the surrounding environment clean.
Easy programming
“open” virtual human-machine interface capable of importing G-code from any type of CAD/CAM software (it is advisable to verify with the software supplier that the CAD/CAM provides a G-code that can be read from the interface).
Unique in its cateogory
The machine has a powerful 2,4 kW electrospindle with R25 tool-chuck generally used on higher-segment machines!
No limit to creativity
4th interpolating axis (lathe processing) that can be positioned on the worktable.
Worktable dimensions mm 1170x760
X-Y-Z stokes mm 915-610-176
Z-axis work-piece clearance mm 160
X-Y-Z axes max. speed m/min 5-5-2,5
Max. tool diameter mm 60
Max. tool-holder diameter mm 16
Electrospindle max speed rpm 24.000
Electrospindle motor power kw 2,4 kW (S6)
