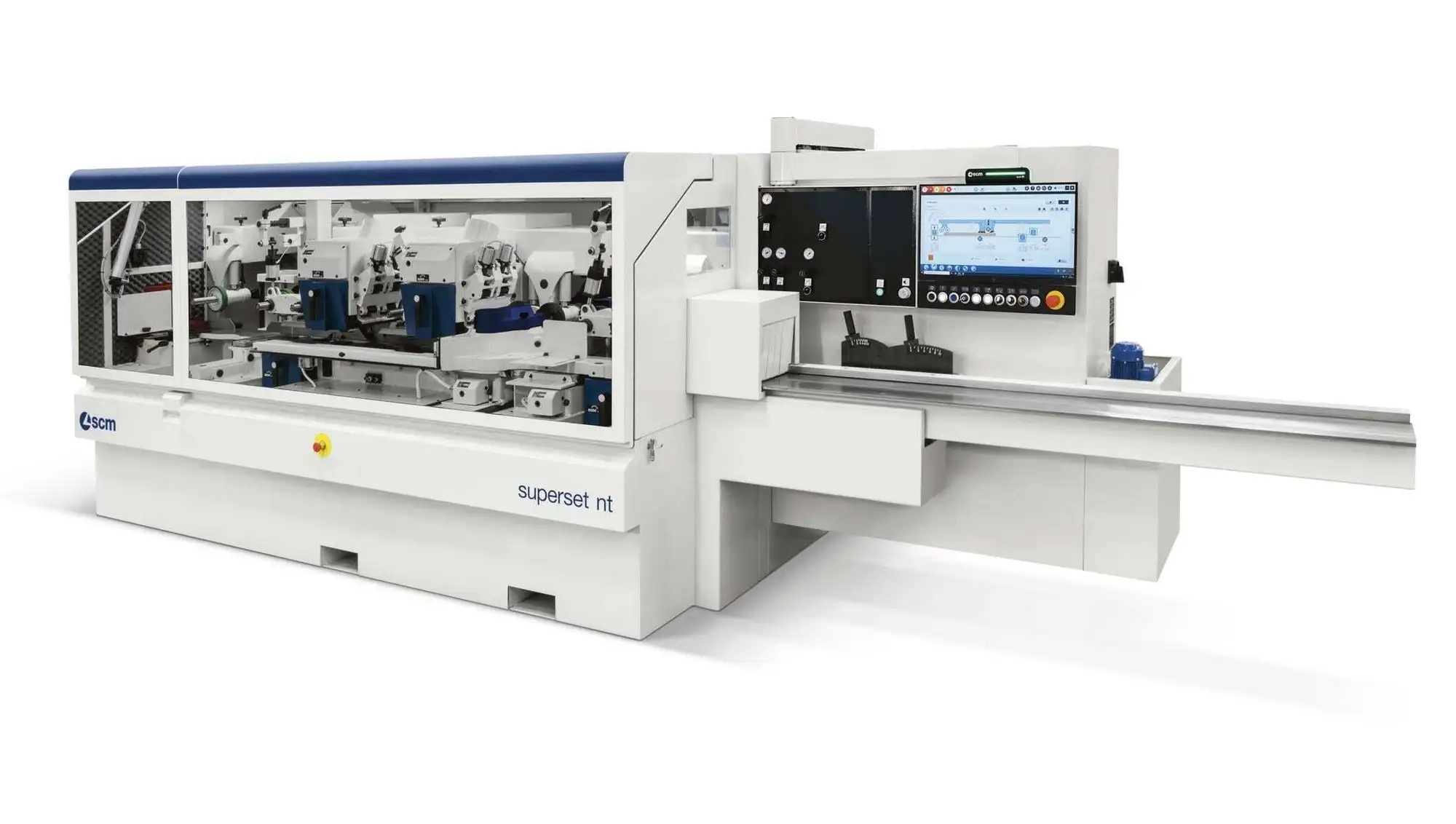

NEW SCM Superset nt

The automatic throughfeed moulder ideal for companies working multiple shifts and/or small batches.
For the production of profiles for windows, doors, stairs, beads, frames and furnishings.
The machine structure has been specific designed to enable the operator to work in ergonomic and safe conditions.

Advantages

EASE OF USE
The MOBILE PC electronic control makes machine programming intuitive. Clear and precise information are always available, thanks to detailed reports.

INCREASED PRODUCTIVITY
The SET-UP system allows the operator to change tools and perform adjustments in just a few seconds, making set-up time up to 20 times faster.

CUSTOMISED COMPOSITIONS
Ten possible configurations thanks to two right vertical spindles, two top horizontal spindles, with and without universal spindle.

HIGH VARIETY OF PROFILES
The HSK technology allows downtime reduction and finish quality enhancement, with improved ergonomics for the operator.

Minimum working width
(finished section)                    mm      25 [15 opt.]
Maximum working width
(finished section)                    mm      240 [260 opt.]
Minimum working thickness
(finished section)                    mm      6
Maximum working thickness
(finished section)                    mm      120 [200 opt.]
Feed speed                            m/min   5 ÷ 25 [6 ÷ 40 opt.]
Motors power                          kW (HP) 4 (5,5) [up to 18,5 (25) opt.]
Spindles rotation speed               rpm     6000 [8500 opt.]
Tool-holder spindles diameter         mm      40 [50 opt.]
Axial adjustment of
 vertical spindles from worktable     mm      80 [75 opt. with HSK]
Axial adjustment of
 horizontal spindles from right fence mm      45
Min./max. profiling tool diameter     mm      100/200
Available units                       n.      4 ÷ 8
