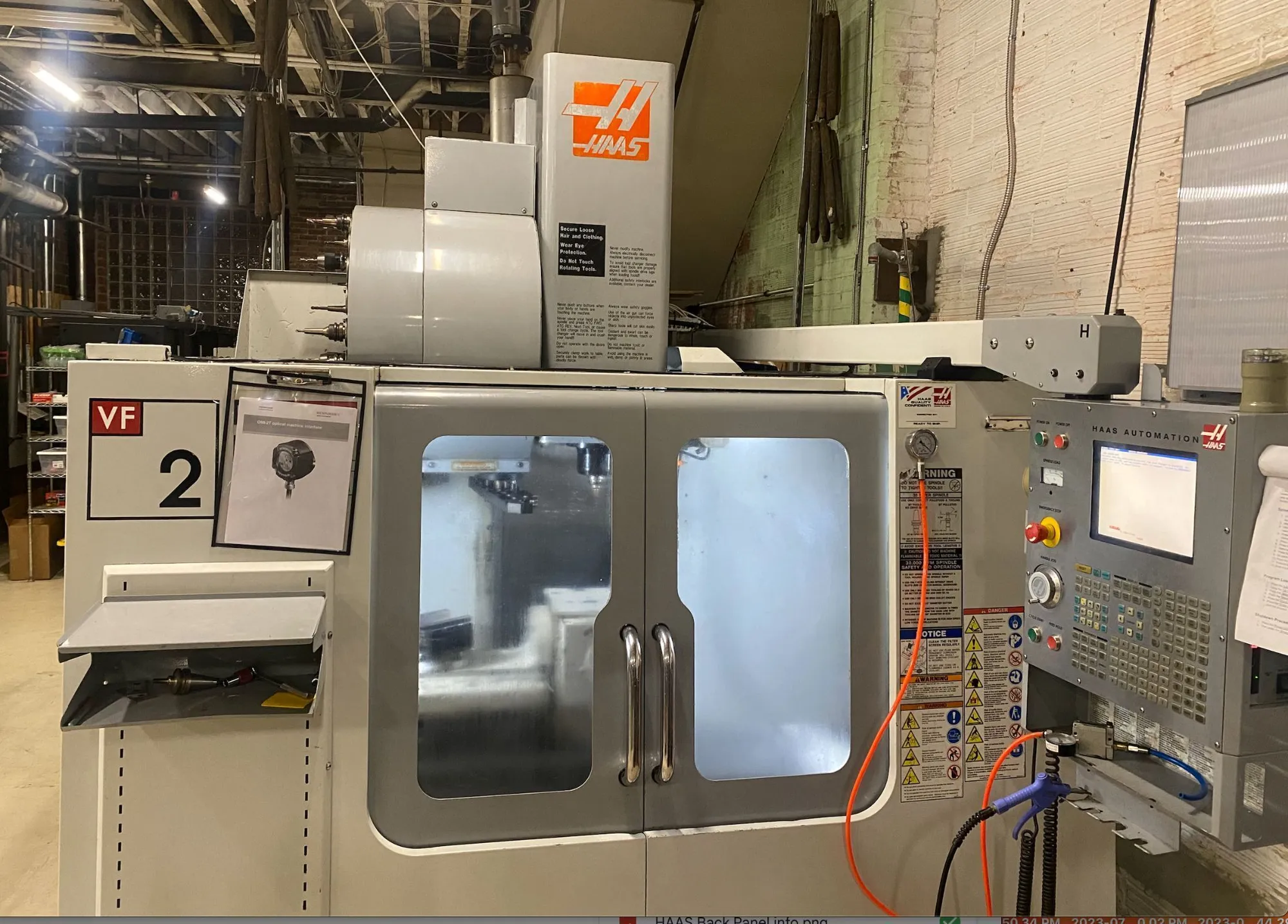

2006 HAAS VF-2 Vertical Machining Center, used condition. Specs: X 30", Y 16", Z 20", Power 30 HP, 8100 RPM, 20-tool ATC, CT/BT 40 taper, table 14" x 36". Ideal for precision machining tasks.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 30,000 RPM | 30,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT 30 | CAT 30 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| Control | CNC (HAAS) | CNC (HAAS) |
| Weight | 3500 | 3500 |
X-Axis Travel: 30"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Table Size: 36" x 14"
Maximum Weight on Table: 3500 lbs (1588 kg)
Spindle Nose to Table Surface: 4" - 24"
X/Y-Axis Rapid Traverse Rates: 1,000 IPM (25.4 m/min)
Z-Axis Rapid Traverse Rates: 800 IPM (20.3 m/min)
Spindle Speed: 30,000 RPM
Spindle Motor: 30 hp (22.4 kW)
Spindle Taper: CAT 30
Haas CNC Control
30K RPM Vector Drive Spindle
5th Axis Trunnion Rotary Table
Renishaw Probing Kit
Chiller Unit
55 Gallon Coolant Tank & Pump
Chip Auger & Chute
Available Cat 30 Tool Holders
