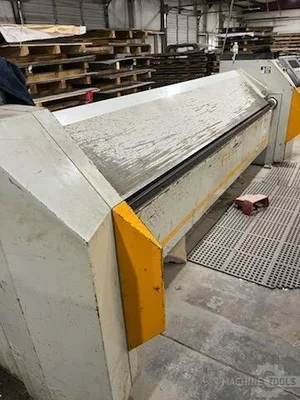

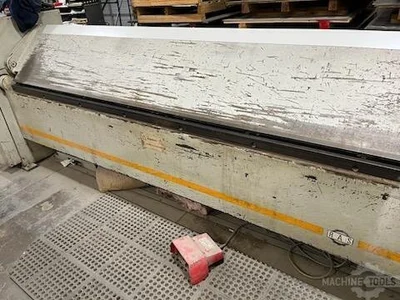

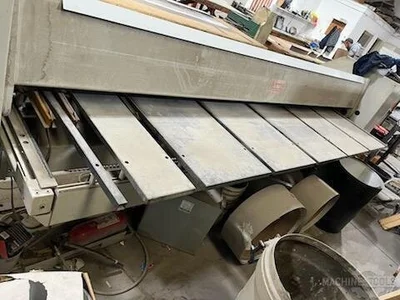

USED RAS 61.31

Brand – RAS Model – 61.31 Type – Folding Machines Year – 1996 Condition – Used – Fair

Max Thickness: 0.1181″
Max Thickness (gauge): 11 gauge
Overall Length: 10′
Max Thickness 0.0591″ Max Thickness (gauge) 16 gauge Max Bending Length Length 124″ (3150 mm) Maximum Sheet Thickness 16 ga/1.5mm CNC Folding Beam Adjustment 0” – 0.217”/ 0 – 5.5mm Maximum Length 124”/3150mm Motor Drive Power Upper Beam 1 hp/.75 kw Back gauge Depth 0.236” – 39.4” / 6-1000mm Motor Drive Power Folding Beam 1.5 hp/1.1 kw Machine Length 170”/4320mm Down stroke Speed 2.5”/sec 6mm/sec Machine Width 55.1”/1400mm Folding Beam Speed 180 degrees/sec Machine Height 54.33”/1380mm Back gauge Speed (0.4” to 39.3”/8mm – 1000mm) 1.9 sec Working Height 33.5”/850mm Back gauge Accuracy  .004”/.15mm Maximum Upper BeamUpstroke 0 – 4.73”/ 0 – 120mm Machine Weight 5,500 lbs. Dimensions Approx. Shipping Dimensions: 175″ L x 64″ W x 56″ H Weight: 5,500
