Brand – ERBEND
Max Thickness: 0.078″
Max Thickness (gauge): 14 gauge
Overall Length: 10.49′
Dimensions: 98.4” / 175.19” / 74.80″
Weight: 12,500 lbs
Control: CNC (Erfold)
Max Thickness 0.08″ Max Thickness (gauge) 14 gauge Overall Length 10.49′ Control CNC (ERFOLD graphical CNC Control) Dimensions 175 x 87 x 75 in. Weight 10141 lbs 7.87 inch opening height capacity on 180° rotating clamping beam with 2 tool stations as 3.93 inch high segmented goat foot tool and 20° single piece sharpnose tool Eccentric upper beam power transmission system for rapid clamping/unclamping Manual folding beam adjustment 39.37 inch servo backgauge system with feather grooves 0.39 and 0.98 inch wide single piece folding tools as 2 sets

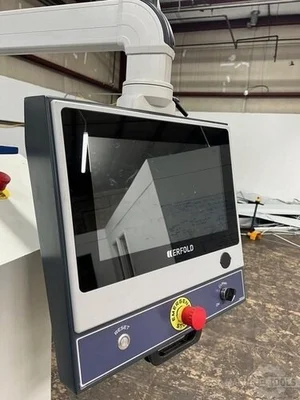

Erfold Basic CNC LBL CNC control software on 15.6″ touchscreen controller with swivel arm Solid lower beam tool without channels Front light barriers
