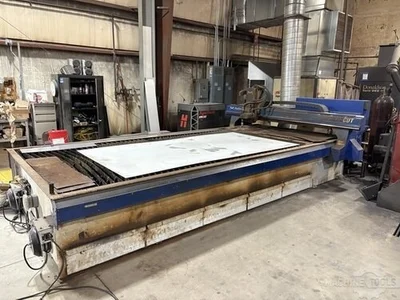

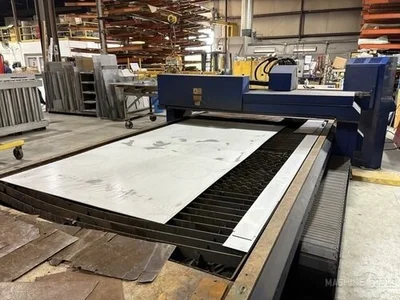

Unitized contruction, build with Compactness in mind Heavy Duty Construction for High Production needs Magnetic Torch Breakaway System Machitech Automatic Torch Height Controller Bosch Rexroth AC Servo Motor Drives (Ethercat) Innovative Patented Inverted Rails System Fully-welded and Machined water table 6”x8” Steel Gantry Fully Machined and Welded Oversized End-trucks for Maximum Stability Agma 10 Helical Rack & Pinion on all axis Bosch Linear Ways on Machined surfaces Ultra-precise Helical Planetary Gearboxes Heat shield under gantry to protect against heat Cables and hoses are protected by an Enclosed Power Track
Cut-Width: 80″
Cut-Length: 150″
Plasma Power: 300 a
# Plasma Torches: 1
Dimensions: OVERALL footprint of table – 96″ x 210″
Control: CNC (Hypertherm EdgeConnect)
Table Capacity: 4″ Clearance Under Gantry: 8.5″ Cutting Speed: 500 IPM (related to process) Max Speed Traverse: 1800 IPM (on 480v drives)

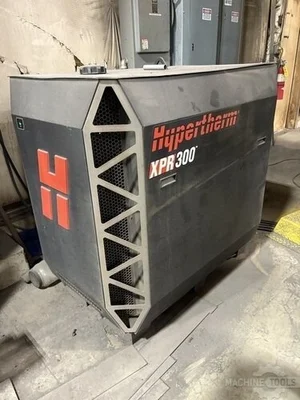

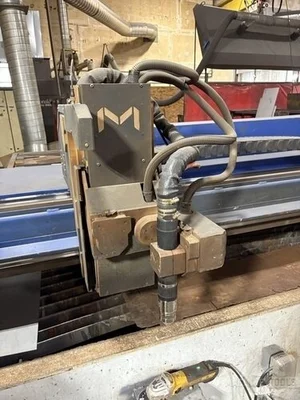

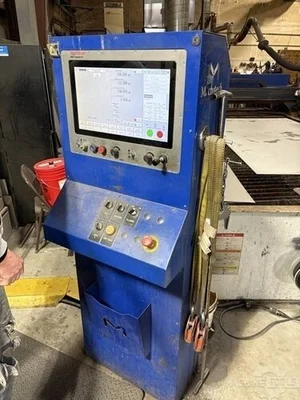

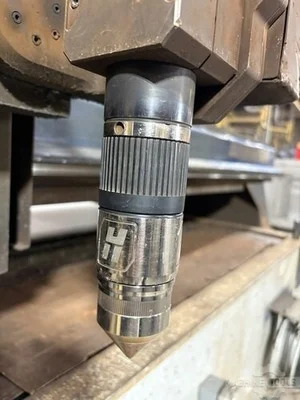

5-Axis Full Contour Bevel Head Removable trays for easy cleanout (waterbed) Electronic raise/lower system (waterbed) Hypertherm XPR300 Plasma System The new XPR300™ represents the most significant advance in mechanized plasma cutting technology, ever. It advances HyDefinition® cut quality by blending new technology with refined processes for next generation, X-Definition™ cutting on mild steel, stainless steel and aluminum. Hypertherm Edge Connect™ Controller EDGE Connect is the next generation of Hypertherm’s industry leading automated control systems. This new platform is built upon 50 years of experience and commitment to develop, build, and sell products that improve your cutting operation. Machitech Industrial Enclosure Our self-standing industrial enclosure protects the controller against dust and impacts while providing hardware controls to the operator.
