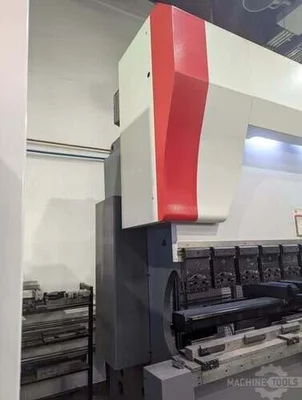

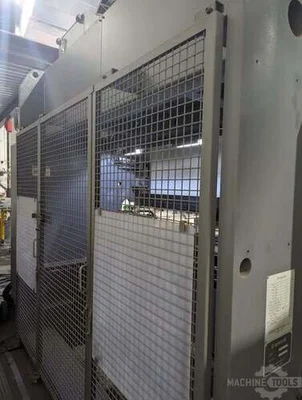

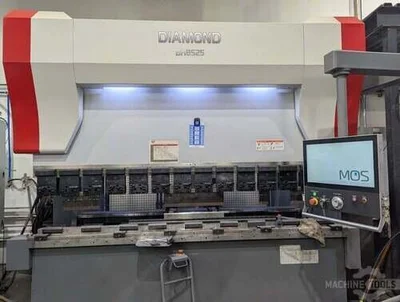

USED MITSUBISHI BH8525

Brand – MITSUBISHI Model – BH8525 Type – Press Brakes Year – 2018 Condition – Used – Good

Tonnage: 94 T
Overall Length: 102″
Between Housings: 87″
Stroke: 9.84″
Weight: 15,400 lbs
Capacity 94 US Tons Ram Repeatability ± 0.00004 Inch Approach Speed Max. 472 IPM Bend Speed Max. 24 IPM Return Speed Max. 472 IPM Punch holder Height 5.9 Inch Back Gauge X distance 33.5 Inch Back Gauge Repeat Accuracy 0.0002 Inch R Axis Travel 7.8 Inch Bending Length 102 Inch Distance Between Frames 86.6 Inch Ram Stroke 9.84 Inch Daylight w/o punch holders 20.8 Inch Daylight w/ standard holders 14.9 Inch Throat Depth 15.7 Inch Table Height 35.4 Inch Table Width 6.7 Inch Weight 15,400 lbs. Oil Capacity 12.6 Gallon KVA 9 KVA Standard Voltage 208 V

Movable Foot Switch Dual Telescoping Back Gauge Fingers “FF Axis” DIAMONDBEND Brake Offline Programming Software Dual Drive Mechanism Crowning System Automatic Thickness Detection System Rear Safety Fence
