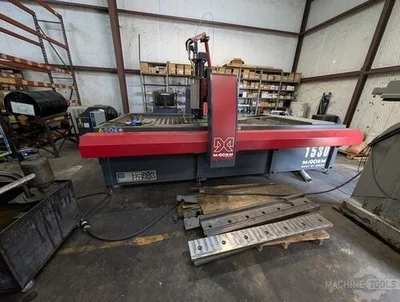

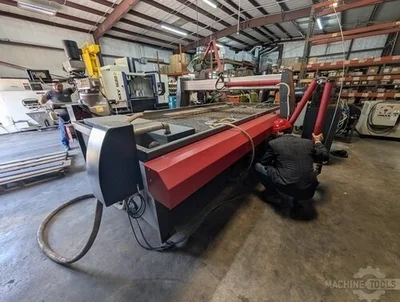

USED OMAX MAXIEM 1530

Like NEW OMAX Maxiem 1530 Waterjet, used during initial training on test samples only. Stored empty and ready to ship.

Pump Output: 50,000 PSI
X: 10′
Y: 5′
Z: 12″
Table Size-W: 68″
Table Size-L: 146″
Power: 30 hp
Dimensions: 14′ x 10′ x 10′ 6″ hgt (w/ whip plumbing)
Weight: 7,000 lbs
Material Supports Slats, 4″ x 14Ga Galvanized Steel (102 mm x 2 mm) Maximum Supported Material Load 300 lbs/sq ft (1,465 kg/sq meter) Electrical Requirements: 3-Phase, 380-480 VAC ±10%, 50-60 Hz Noise Level: Below 80 DBA At One Meter For Submerged Cutting Speed: 500 in/min (12.70 m/min) Linear Positional Accuracy*: ±0.003″ (±0.076 mm) Repeatability*: ±0.001″ (±0.025 mm)

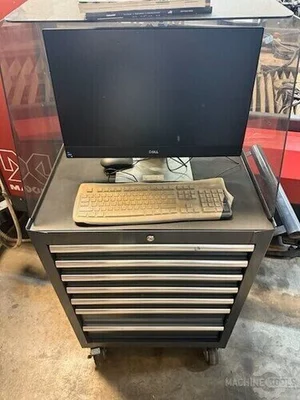

All-In-One Controller Computer With Large 23″ Screen IntelliMAX Standard Software IntelliTRAX Traction Drive Inside The X-Y Axis Beams, Fully Enclosed Inside Coated Steel Covers Programmable Motorized Z-Axis OMAX MAXJET 5i Nozzle 600 Lbs Abrasive Bulk Tank A-Jet Cutting Head MaxJet 5i Fusable MT Diamond Nozzle Tool Chest Waterproof Keyboard With Mouse And Pad Abrasive Hopper Water Level Control Swivel Plumbing
