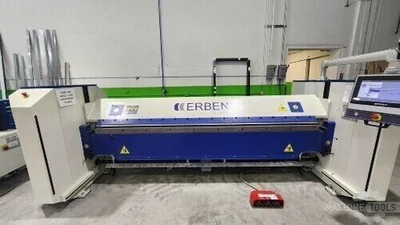

Brand – ERBEND
Max Thickness: 0.078″
Max Thickness (gauge): 14 gauge
Overall Length: 10.49′
Dimensions: 98″/175″/74″
Weight: 10,500 lbs

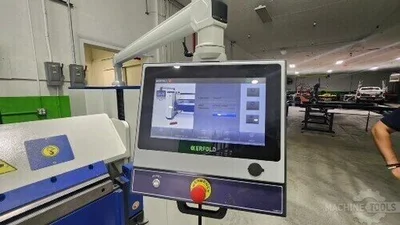

Control: CNC (ERFOLD ADVANCED CNC Graphic Software on 15.6” Touch Screen control)
Opening height (without tools) 160 mm Motor Power (Sew Eurodrive AC) 1.5 kW Transmission system Eccentric Clamping speed 90 mm/sec Folding Beam (Y axis) Folding angle 0 – 150° Motor Power (Sew Eurodrive AC) 2.2 kW Folding Speed 80°/sec Folding Beam Height Adjustment (A1-A2 axis) Adjustment height 0 / -35 mm Control Manual Back gauge system ( X axis) Movement speed 300 mm/sec Motor Power (Servo) 400 W Positioning / repeatability accuracy +/- 0.1 mm

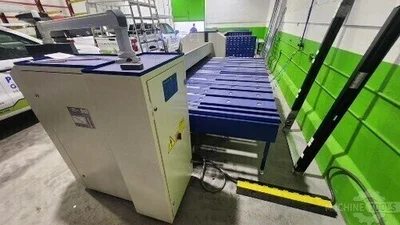

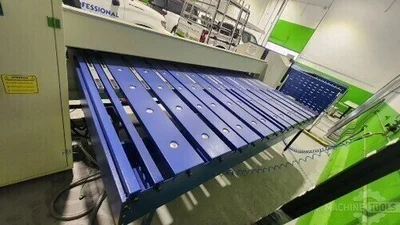

90 mm segmented goats foot tools 10 & 25 mm sharp nose tools 2D Controller 1000 mm backguage with roller balls
