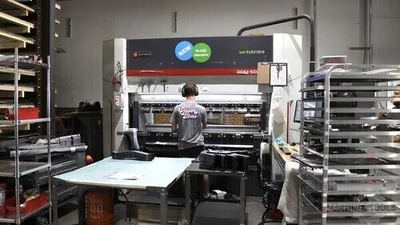

USED DENER DDM-5020

Brand – DENER Model – DDM-5020 Type – Press Brakes Year – 2022 Condition – Used – Excellent

Tonnage: 55.116 T
Type: ELE
Overall Length: 6.69′
Between Housings: 6.69′
Stroke: 11.811″
# Axis: 4
Dimensions: (L, W, H) 124.8 in x 89 in x 98.4 in
Weight: 12,125lbs
Control: CNC (o ESA S 675 Controller)

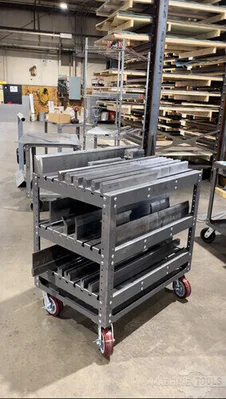

DENER DDM 5020 SERVO Press Brake: MODEL DD-M-5020 : 6.8’ by 55 US Ton ESA S 675 Controller 4 Axis Back Guage (X, R, Z1, Z2) Ram Approach & Bending Movement Powered by (2) Servo Motors, Belts, Pulleys Ram Return, Spring Activated (Ram Goes Up in Failure) O-Frame Design offers full length bending & gauging No Oil, Tank, Piping, Valves, Maintenance 50% ENERGY SAVINGS of Hydraulic Brake Manual Clamping American Tyle Tooling (Top and Bottom) DSP Safety Light Curtain 480V 3ph Full Cart of Tooling Included: List of dies: 54″ @ 0.25″ acute 72″ @ 0.375″ acute 72″ @ 0.50″ acute 72″ @ 0.625″ acute 72″ @ 0.875″ acute 72″ @ 1″ 88deg 36″ @ 2″ 88deg 12″ @ 1.5″ 88deg List of Punches: 90″ @ 0.032″ Radius arrow punch 36″ @ 0.040″ Radius Gooseneck punch 45″ @ 0.125″ Radius arrow punch 32″ @ 0.188″ Radius arrow punch 32″ @ 0.25″ Radius arrow punch
