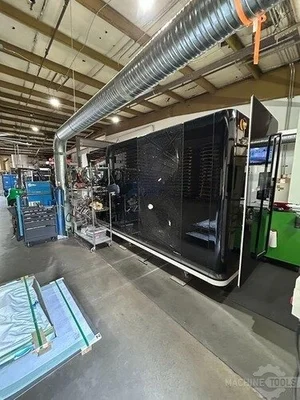

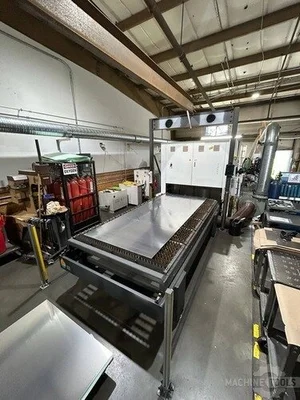

USED BODOR P3015

Brand – BODOR Model – P3015 Type – Laser Cutters Year – 2023 Condition – Used – Excellent

Sheet-W: 59.055″
Sheet-L: 118.11″
Wattage: 12000 kw
IPM: 7874 ipm
Dimensions: 391.2″ x 120″ x 90″
Weight: 19,000 lbs

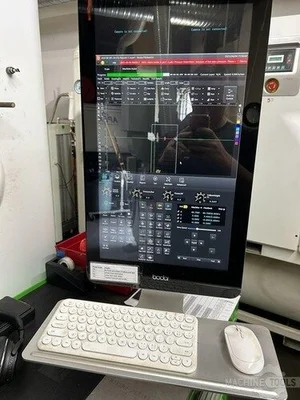

Control: CNC (Bodor Thinker 3.0)

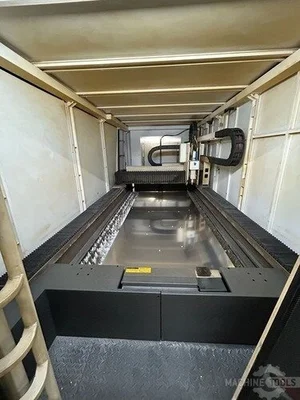

Working Area: 60″ x 120″ Sheet-W: 60″ Sheet-L: 120″ Z-axis Travel: 12.4″ Max linkage speed: 7874 ipm Max. Acceleration: 4.0G Positioning Accuracy: ±0.05 mm or +/- 0.0011968″ Repositioning Accuracy: ±0.02 mm or +/- 0.000787″ Maximum Sheet Thickness (Steel): 40 mm/1.57″ Maximum Cutting Thickness (Batch Processing): Carbon Steel: up to 40mm/1.57″ Stainless Steel: up to 40mm/1.57″ Aluminum: up to 30mm/1.18″ Brass: up to 18mm/0.71″ Max. Load Capacity Per Table: 2,403lbs Equipped With: 5′ x 10′ shuttle table 12kw Laser Resonator Bodor Genius Auto focus laser head Bodor Thinker 3.0 control system Scan cutting function Air Compressor Light Curtain

5′ x 10′ shuttle table 12kw Laser Resonator Bodor Genius Auto focus laser head Bodor Thinker 3.0 control system Scan cutting function Air Compressor Light Curtain
