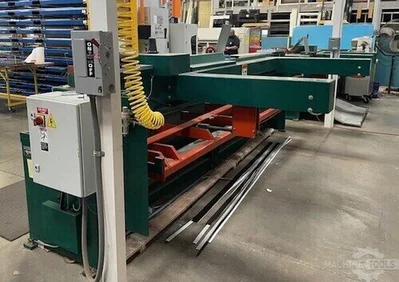

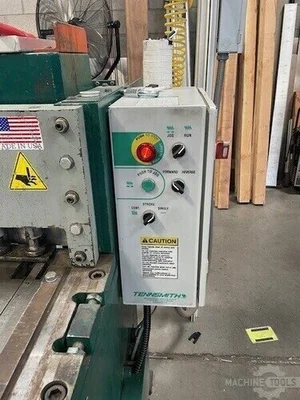

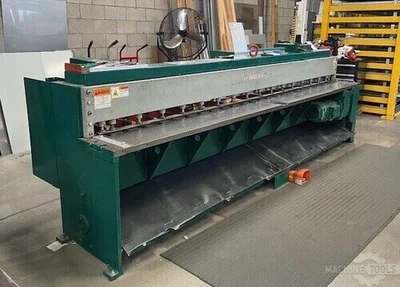

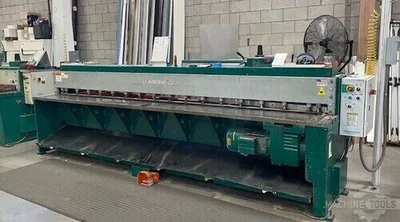

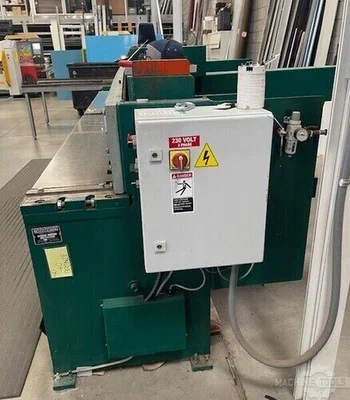

USED TENNSMITH LM1214

Brand – TENNSMITH Model – LM1214 Type – Power Squaring Shears (Gauge) Year – 2016 Condition – Used – Excellent

Max Gauge: 14 gauge
Length of Blade: 12′
Hyd/Mech: Mech
Back Gauge: 30″
Power: 5 hp
SPM: 35 strokes/min.
Dimensions: 145″L x 27″W x 55″H
Weight: 6200 lbs
Maximum Shearing Capacity Mild Steel 14 gauge/2,0mm Mild Steel Rated Materials 80,000 Tensile / 44,000 Yield Maximum Shearing Capacity, Stainless Steel 18 gauge/1,25mm Stainless Shear Rated Materials 90,000 Tensile / 55,000 Yield Maximum Cutting Length 127 in/3225mm Back gauge Range 30 in/762mm Strokes per Minute 35 Number of Hold downs Solid Bar with Insert Motor-230, 3-phase, 60Hz 5 hp Overall Dimensions, Less Gauges, LxWxH 145 x 27 x 55-1/2 in Floor Space, Gauges in Position 145 x 60 x 55-1/2 in Shipping Weight 6200 lbs
