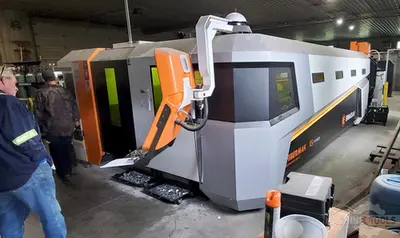

USED ERMAKSAN FIBERMAK GEN 3 4020

Fibermak Momentum GEN-3, honored with global awards like iF Design, Reddot, Good Design, and Design Turkey, is an engineering marvel crafted by Ermaksan for high-performance demands under tough industrial conditions. With a robust body, durable performance, precision cutting, and functional structure, it responds to the needs of professionals. Its innovative design provides unmatched user comfort through features like intuitive programming, simplified interface language, shortcut keys, ergonomic control buttons, and height-adjustable operator arm. The GEN-3 series offers 2.5G acceleration as standard on servo-driven models and can be upgraded to the GEN-4 level with the optional 4G high acceleration package, backed by advanced design and dynamic analysis.

Sheet-W: 6.5′
Sheet-L: 13′
Wattage: 4000 w
Dimensions: 40013 lbs
Weight: 489″x223″x91″
Control: CNC (Beckhoff)
Sm 4000.2m X 4m Resonator Watt Yls 4000-Y13 Power Range % 10-105 Laser Beam Quality @ Collimator Mm Mrad 2 – 2.5 Power Stability % 1 – 2 Pulse Frequency Range Khz 5 Laser Wave Length Nm 1075 ± 5 Output Fiber Core Diameter μm 150 Excitation – Laser Diod Cooling Water Flow Rate Gallon/Min 10.6 Cutting Capacity (High Quality) – – Mild Steel Inch .79” Stainless Steel Inch .47″ Aluminum Inch .39″ Galvanized Mm 5/32″ Brass Inch 1/4″ Copper Inch 1/4″ Maximum Worksheet Dimensions Inch 159 X 80 Maximum Burden Capacity Pounds 5,511 Machine Axes – 4-Axes [X, Y, Z, U] Axial Movements – – X, U Axes Servo Motorized Table Inch 159 Y Axis Servo Motorized Bridge Inch 81 Z Axis Servo Motorized Cutting Head Inch 6 Accelerations – – X, U Axes Servo Motorized Table G 2.5 Y Axis Servo Motorized Bridge G 2.5 Z Axis Servo Motorized Cutting Head G 2.5 Maximum Axes Velocities Ipm [5,551 (Simultaneous) (X, Y Single Axis Velocity 4,728 Inch/Min)] Positioning Accuracy Inch ± 0.001 Repetition Accuracy Inch ± 0.00059 Focal Length Inch 5–8 Shuttle Table (Automatic Loading – Unloading Unit) Palette 2 (35 Sec) Assist Gas – – Assist Sensor 1 Mild Steel – Oxygen (0.5-6 Bar) Assist Sensor 2 Stainless Steel – Nitrogen (0.5-25 Bar) Assist Sensor 3 Aluminum – Dry Air Or Nitrogen (0.5-25 Bar) Cutting Head – Precitec Procutter Cnc – Beckhoff Cp6242 Cad/Cam Software – Lantek Expert Cut Network Connection – Ethernet Operation Via Panel – 22-Inch Ts Display, Floating Pendant Arm Control Average Power Consumption Hp 51 Machine Dimensions (L X W X H) Inch 449 X 169 X 87 Machine Weight Pounds 34,831

IPG-YLS 4000W Fiber Laser Source Beckoff CNC -Video Cutting Monitor Beckoff Servo Drives / Motors (2.5G / 5,551 IPM) Precitec ProCutter, Auto-Focus Cutting Head Lantek CAD/CAM Software
