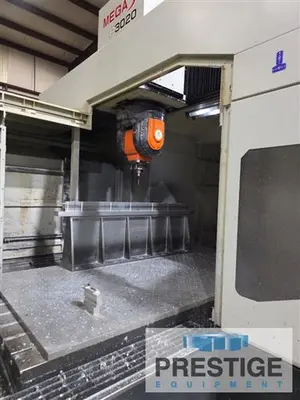

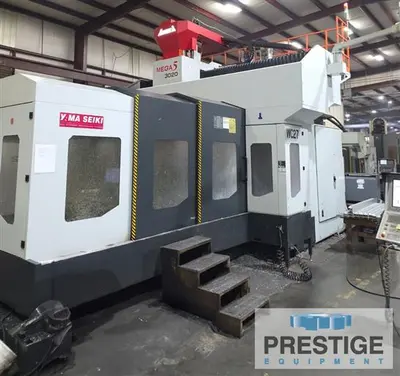

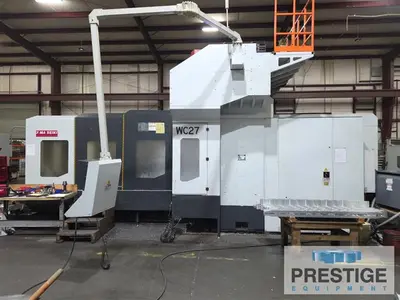

USED 2017 AWEA MEGA 5

Specifications:
X-axis travel: 118.1"
Y-axis travel: 100.78"
Z-axis travel: 39.3"
Table Size: 126" x 60"
Work Piece Length: 118.11"
Work Piece Width: 59.05"
Work Piece Height: 33.46"
Max. table load: 26,450 Lbs.
Spindle taper: HSK-100A
Spindle speed max: 15,000 RPM
Spindle motor: 66 HP / 53 HP
Tool Changer: 40 ATC

Equipped With:
Heidenhain 640 series 5-Axis CNC Control
Through Spindle Coolant
40-Station Automatic Tool Changer
Full Splash and Chip Enclosure
Spindle cooling system
Centralized automatic lubricating system
Twin screw type chip augers
Electric cabinet with air conditioner
Mobile handwheel
Foot switch for tool release

Features:
Heidenhain 640 series 5-Axis Control

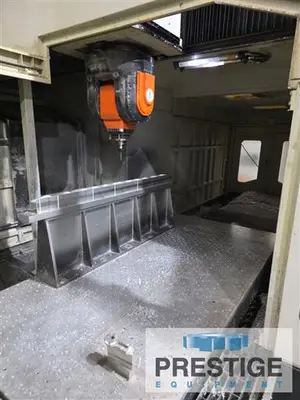

2-Axis Nutating Head
Through Spindle Coolant
40-Station Automatic Tool Changer
