USED 2017 OKK HMC-500

2 Pallet Changer System
Full 4th Axis Pallet Rotation

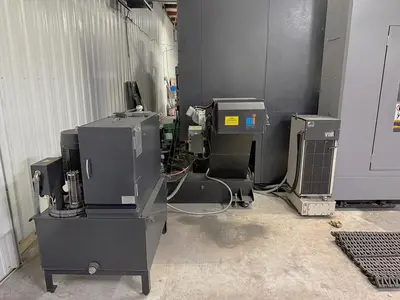

Chip Conveyor

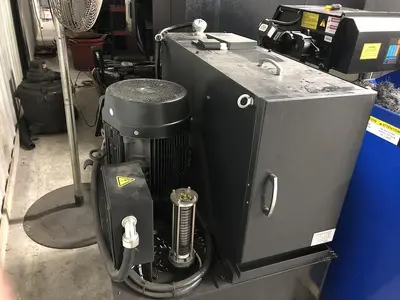

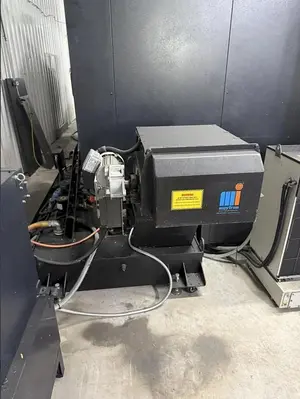

1000 PSI High-Pressure Coolant thru the Spindle

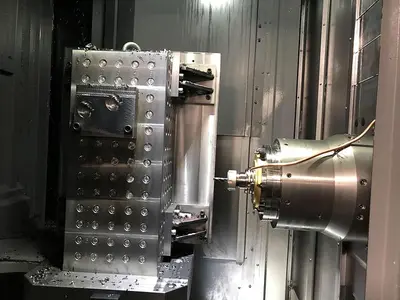

T1-A Renishaw OMP60 Probe with OTS Tool Setter

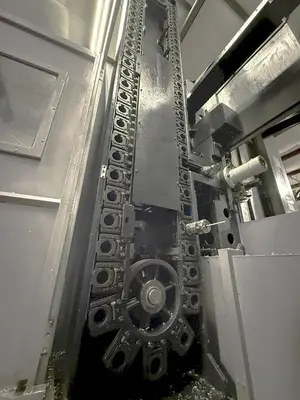

60 Station Tool Changer

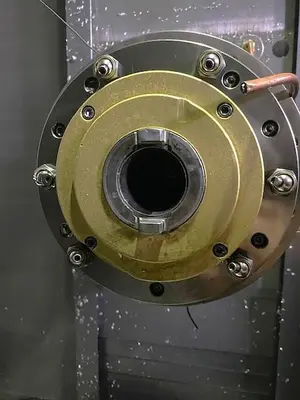

15,000 RPM CAT40 Big Plus Spindle
High-Speed Machining
Custom Macro B
Coordinate System Rotation
Remote Jog Handle
Tool Life Management (256 Sets)
Work Coordinate System Additional 48 Types
Expanded Memory (1000 Programs)
200 Pairs of Tool Offsets

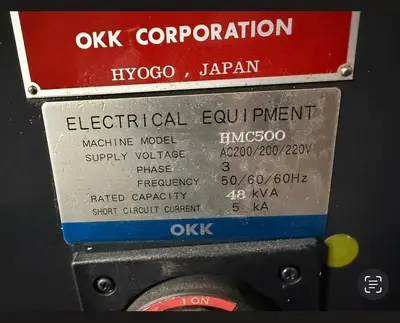

Wired 200-220V / 3 Phase / 50/60 Hz
All Available Manuals

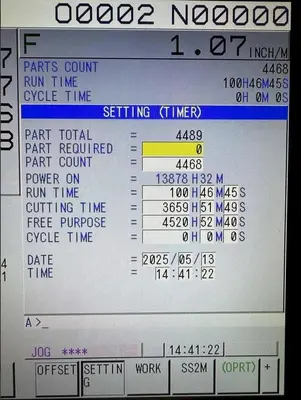

**Power On Hours 13,878**
**Cutting Hours 3,659**

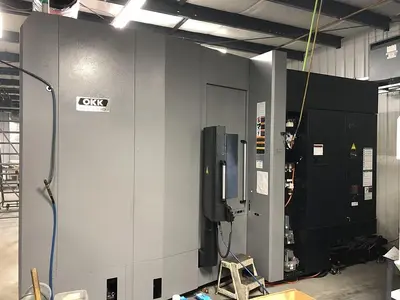

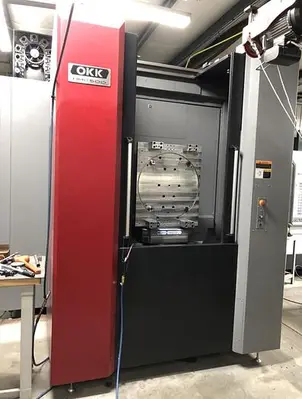

The 2017 OKK HMC-500 is a robust used CNC Horizontal Machining Center. Featuring a Fanuc 31i-MB CNC control, this machine supports precision operations with its full 4th axis pallet indexing at .001-degree resolution. It is equipped with two pallets measuring 19.7" x 19.7" and can handle a maximum table load of 1,543 lbs. The machine boasts a versatile travel range with X, Y, and Z axes at 29.9", 29.9", and 31.5" respectively.

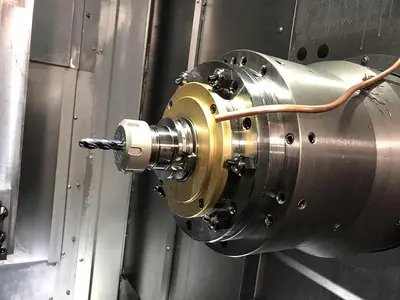

Designed for high-precision, high-speed machining, the HMC-500 includes a powerful 50 HP spindle that reaches speeds up to 15,000 RPM. This model is equipped with a CAT 40 Big Plus spindle taper, enhanced by high-pressure coolant through the spindle for efficient cooling and chip removal. Additionally, the machine features tool and part probing for improved accuracy and productivity and possesses a 60-station automatic tool changer to enable various machining processes without manual intervention.

The OKK HMC-500 is constructed with a durable framework, weighing 23,200 lbs and built with dimensions of 191" x 108" x 142". It achieves rapid traverse rates of 2,480 IPM, making it well-suited for demanding industrial applications requiring speed and accuracy. This machining center is ideal for businesses looking for a combination of power, precision, and versatility in a used industrial machine.

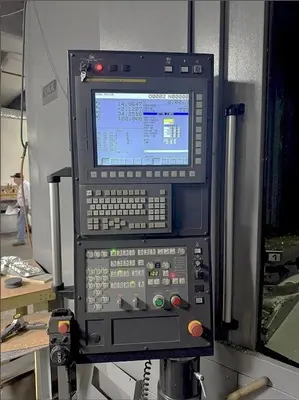

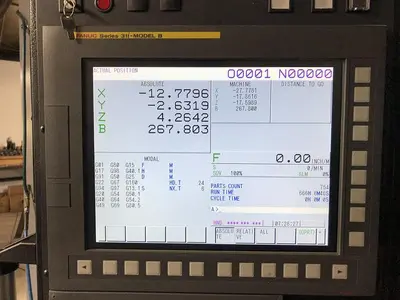

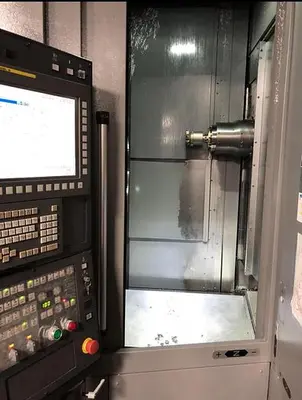

Machine Control: Fanuc 31i-MB CNC Control

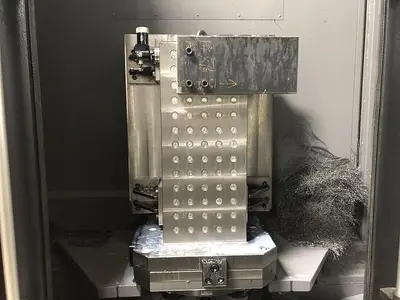

Pallet Size / Number of Pallets: 19.7"x19.7" / 2 pallets
Maximum Table Load: 1,543 lbs
Pallet indexing: .001 Degree Full 4th Axis
X-Axis Travel: 29.9
Y-Axis Travel: 29.9"
Z-Axis Travel: 31.5"
Spindle Taper: CAT 40 Big Plus
Spindle speed: 15,000 RPM
Spindle motor: 50 HP
Tool Magazine Capacity: 60 Station Tool Changer
Rapid Traverse Rates: 2,480 IPM
Machine Dimensions LxWxH: 191"x108"x142"
Machine Weight: 23,200 lbs
