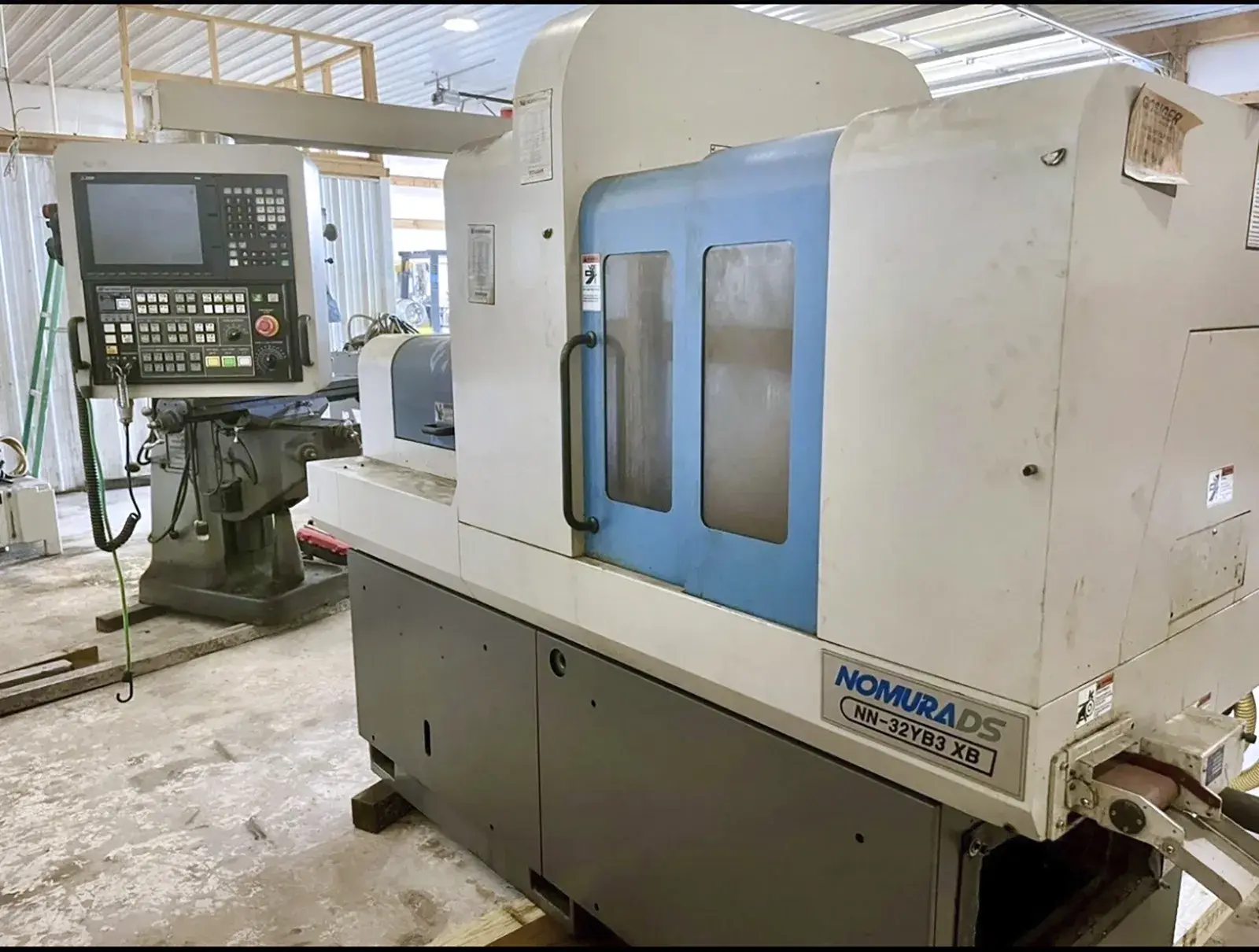

USED 2019 NOMURA NN-32YB3
Overview
No description available
Specs
Max. Machining Diameter: 32mm
Max. Machining Length: 190mm /1chuck
Max. Parts unloading length: 93mm
Main Spindle Through-Hole Diameter: Ф37mm
Spindle rpm (Main/Sub): Max. 8,000rpm
Sub Spindle Chucking Diameter: 3200
Max. Number Of Tools: 39
Max. machining drill: Ф13mm
Max. machining tap: M 10
O.D. tool: 6 (□16X150mm max)
I.D. tool: (6(ER16x5+OP5tools) + (ER20x1+OP1tools)
Cross drill (B axis)
Cross drill rpm 6000
Rapid feed rate X1: 20/min X2 : 25m/min Z1,Z2,Y1,Y2 : 28m/min
Min. command unit: in (mm): 0.0001mm
C axis Min. command unit (Main, Sub): 0.0001°
Main Spindle Motor: 5.5/3.7kW
Cross drill motor: 1.5
Sub Spindle Motor: 3.7/1.5kW
X1.Y1,Z1,X2.Y2.Z2 axis feed motor
Coolant pump (Main, Sub): 1.0kW
Equipped With

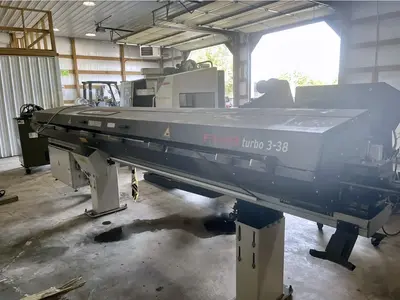

FMB Turbo Barfeed
Mist Collector
Sub : Chuck sleeve /Spring/Spindle cap(1set)
Automatic power turn-off device
Automatic oiling device (level detector attached)
Cutting oil device (Main/Sub)
Coolant failure detector(Main/Sub)
Automatic fire extinguisher
Rear ejection unit (Ф24mm or less)
Spindle tube liner for small part
Large-sized lubricant pump 1.8ℓ

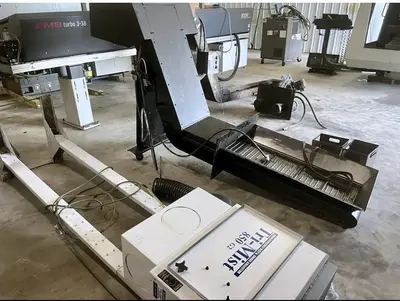

Chip conveyor & Chip box
Medium / High pressure coolant
Long drill holder
Fixed guide bush
Tap breakage detector (Main
Sub)
Tool presetter
Tool air blow
