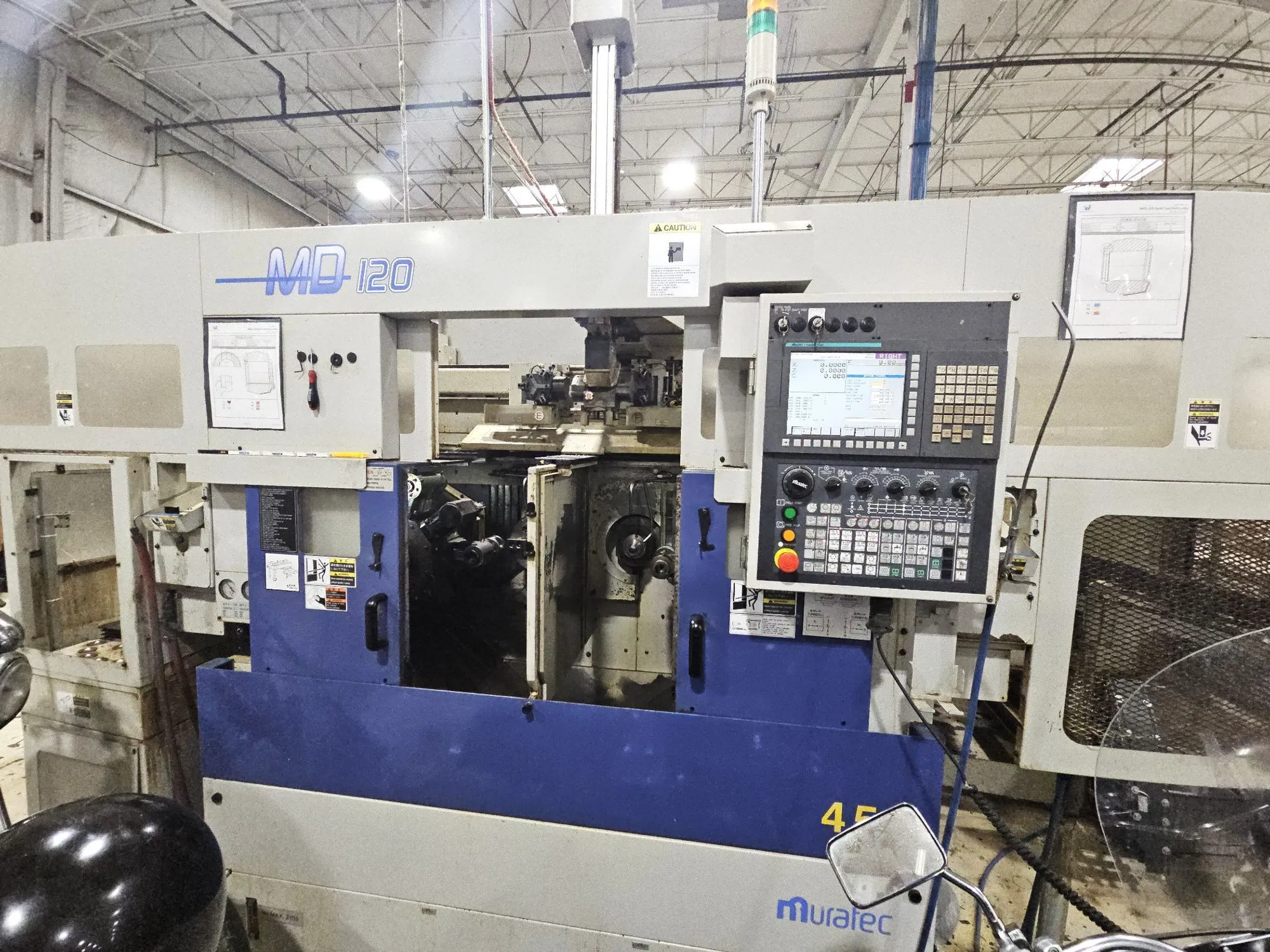

USED 2012 MURATEC MD-120G

(1 or 2) 2012 Muratec MD-120G 3-Axis Live Tool Twin Spindle Turning Centers with Overhead Gantry Loader Input Stocker Feeder Table with All Toolholders and Work Holding on Optional Installed Chuck or Collet Chuck Madrel on Interest.

(1 or 2) 2012 Murata MD-120G 3-Axis Live Tool Twin Spindle Turning Center with Overhead Gantry Loader Input Stocker Feeder Table with Murata Optional W/S Turret Bar Added Rigidity and tool stations and larger 3-Axis Milling Diameters Live & Static Tooling and Output Part Conveyor.

2012 Murata MD-120G CNC Twin Spindle with Fanuc 31iT CNC Control, Murata WF-14L-160 14 Pallet Stocker (2) Murata MD-120 Live Tool Drilling Units Installed on Machine in P

Special Chucks Removed w/ Air Blast- Coolant w/Part Confirmation Installed for Set up on Production Machining Operation.

Main Specifications:
Distance Between Spindles: 13.39"
Max. Swing: 11.61"
Standard Chuck Size: 6" or 8"
Turning Diameters: 4.72" Nominal, 9.440" Max.
Turning Lengths: 3.150" Nominal, 3.94" Max.
Number of Turret Stations: 2- 8
X-Axis: 5.12" Stroke, 945 IPM Traverse Rate
Z-Axis: 5.71" Stroke, 945 IPM Traverse Rate C-Axis Milling & Drilling Feature
Rapid Traverse Rate (X & Z Axis): 78.78 FPM
Spindle Speeds: 45 - 4500 RPM
Spindle Noses: A2-5, Bore 1.850"
Spindle Drive Motors: 15 HP
Tool Shank Size: 0.75" Square, 1.570" Round
Approx. Weight w/Loader: 11,800 lbs.
Floor Space: L 139.37" x w 136.22"

Standard Loader Specifications:
X-Axis Stroke: L7.87"/R63", Max. Speed: 492 FPM
Y-Axis Stroke: 19.09", Max. Speed: 361 FPM
Z-Axis Stroke: 6.1", Max. Speed: 115 FPM
a-Axis: 180 Deg., Max. Speed: 0.6 sec./180 Deg.
Load/Unload Grippers: Outer Diameter: 3.54", Jaw Stroke: 1.18"
Max. Work piece Weight: 8 Lbs. x 2

Equipped with:
Fanuc 31iT CNC Control, (1) Overhead Gantry Loaders, Rear Chip Conveyor,
Coolant Tank and Pump, All Book & Manuals, A2-5 Spindle Nose M-Code Air Blast and Coolant Blast Through Chucking Center
Part Work Location Confirmation,
LNS - Turbo HB Tall Discharge Chain Type Chip Conveyor

Special Reduced Price:.... Please Email Request for Quotations.

Terms: Payment in Full Prior to Shipment.

F.O.B: Machine Prep & Rigging Price on Request.

I look forward to reviewing more details and your project application needs for Twin-Spindle Gantry Loader applications and pleased offer this Rare CNC Twin Spindle with Live Tooling Features and I look forward to your questions.
