USED 2022 YASKAWA MOTOMAN YASKAWA MOTOMAN GP280L
Overview
Description

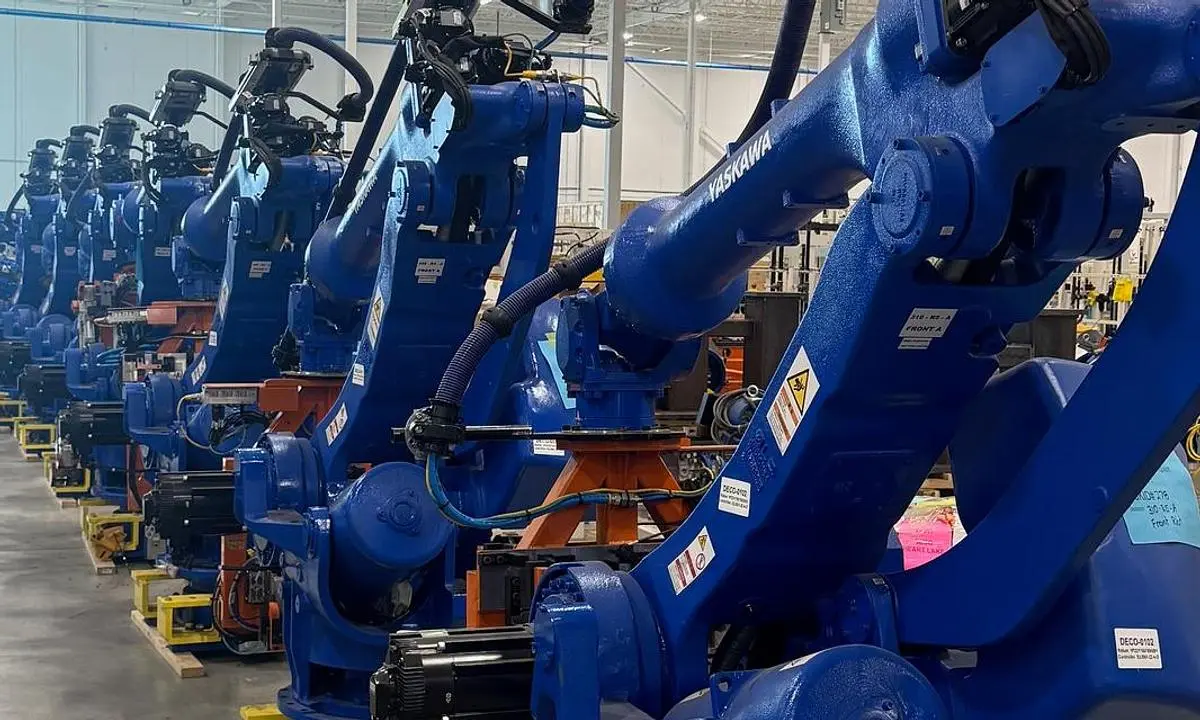

Yaskawa Motoman GP280L Robot, Used, 2022
Specifications
This used Yaskawa Motoman GP280L (2022) is a robot available from R.A.B. Industries. It is equipped with the nan controller and 6-axis configuration.
1-NEVER USED YASKSAWA MOTOMAN GP280L 6 AXIS ROBOT WITH YRC1000
STK#105414
DATE OF MFG. 2022
========================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
FROM THE OEM:
Ideal for jigless applications, the powerful extended-reach GP280L robot for high-payload handling tasks offers exceptionally fast axis speeds and acceleration capabilities for reducing cycle time and increasing production output. High moment of inertia ratings easily accommodate large parts, and a streamlined upper arm helps to avoid interference with fixtures and allows easy access to parts in tight spaces for optimum flexibility. Built with complex workcells in mind, the six-axis GP280L robot enables high-density robot placement, as well as easy installation and maintenance.
SPECIFICATIONS:
CONTROLLED AXES 6
MAXIMUM PAYLOAD 280 KG
REPEATABILITY 0.01 MM
HORIZONTAL REACH 3,114 MM
VERTICAL REACH 3,552 MM
WEIGHT 2,380 KG
INTERNAL USER I/O CABLE 24 CONDUCTORS WITH GROUND
INTERNAL USER AIR LINE (1) 3/8" CONNECTION
POWER REQUIREMENTS 380-480 VAC
POWER RATING 7.5 KVA
RANGE OF MOTION:
S +/- 180°
L + 90 /-45°
U + 15.5 /-120°
R +/- 360°
B +/- 125°
T +/- 360°
MAXIMUM SPEED:
S 110 °/SEC
L 90 °/SEC
U 90 °/SEC
R 125 °/SEC
B 125 °/SEC
T 205 °/SEC
ROBOT APPLICATIONS:
DISPENSING
MATERIAL CUTTING
MATERIAL HANDLING
MACHINE TENDING
PRESS TENDING
