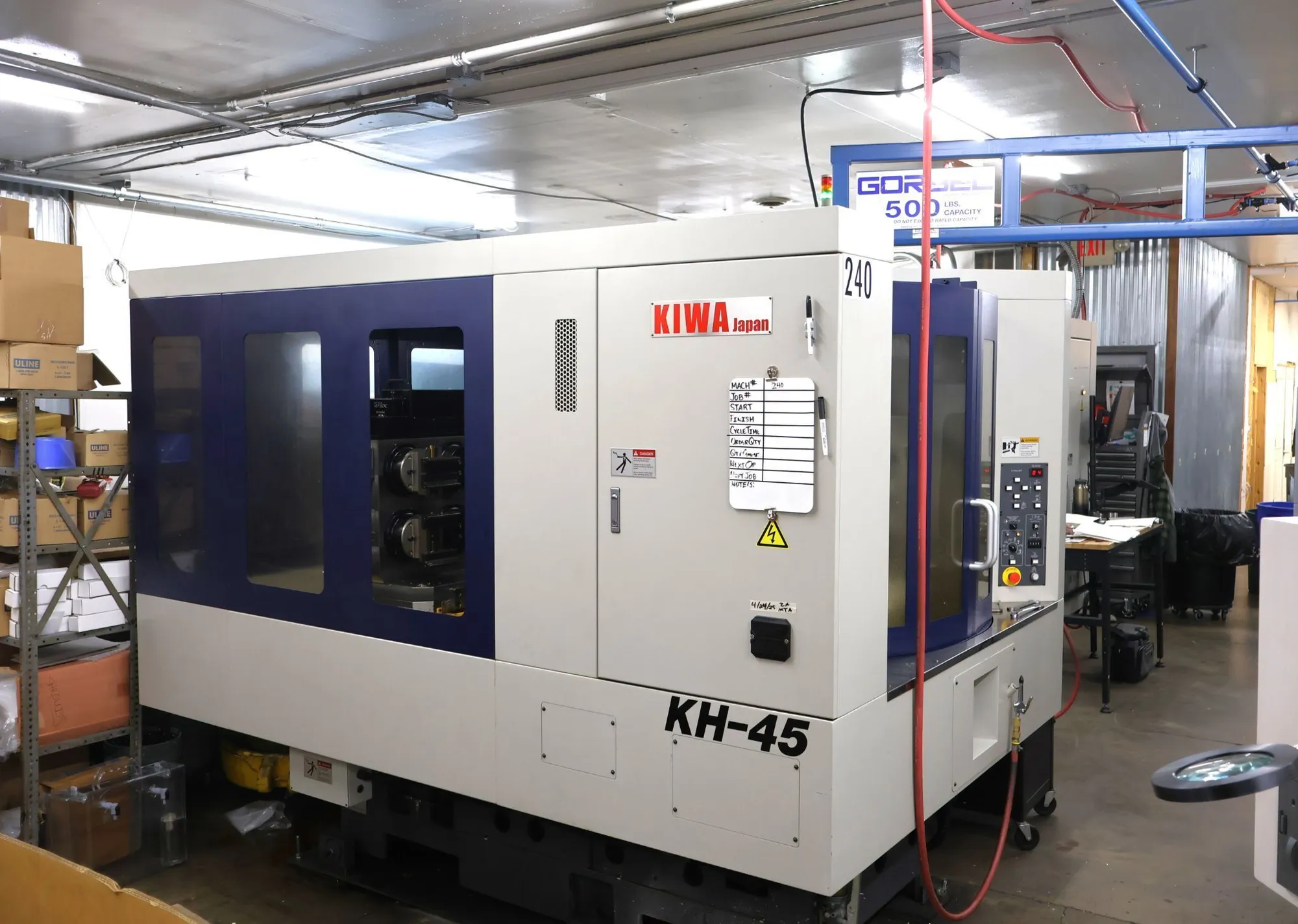

2014 KIWA KH-45, installed as new in 2017, offers high performance with 4+1 5-axis capability and 6-pallet capacity. Featuring a 20,000 RPM HSK-63 spindle, FANUC 31i control, and a 120-tool ATC. Includes Renishaw probes and KME and Koma 5-axis tombstones.
| PALLET WIDTH | 15.723" | 399.36 mm |
| PALLET LENGTH | 15.723" | 399.36 mm |
| PALLET INDEXING | FULL 4TH | FULL 4TH |
| NUMBER OF PALLETS | 6 | 6 |
| TABLE LENGTH | 15.72" | 399.29 mm |
| TABLE WIDTH | 15.72" | 399.29 mm |
| MAX WORKPIECE WEIGHT | 1,100 lb | 499 kg |
| X-AXIS TRAVEL | 25.157" | 638.99 mm |
| Y-AXIS TRAVEL | 23.978" | 609.04 mm |
| Z-AXIS TRAVEL | 26.73" | 678.94 mm |
| SPINDLE SPEED | 20,000 RPM | 20,000 RPM |
| SPINDLE TAPER | HSK 63 | HSK 63 |
| TOOL POSITIONS (ATC) | 120 | 120 |
| RAPID TRAVERSE RATE | 2,362 in/min. | 5,999.5 cm/min. |
FANUC 31I-MODEL B
6-PALLET CAPACITY: (1) LOAD/UNLOAD STATION, (4) IN POOL, (1) IN MACHINE
20,000 RPM HSK-63 SPINDLE
120 ATC CAPACITY
(80) HSK-63 TOOL HOLDERS INCLUDED IN SALE
RENISHAW OMI-2 PROBE
RENISHAW NC4 LASER TOOL SETTER
3000 PSI CHIPBLASTER HIGH PRESSURE COOLANT SYSTEM
MISTBLASTER SUPER EFFICIENT MIST COLLECTION SYSTEM
LNS TURBO MF2 CHIP CONVEYOR: DUAL CONVEYOR DESIGN TO REMOVE LARGE CHIPS OF ALL SIZES AS WELL AS FINES
(2) KME CNC TS-400MM 5-AXIS WIRELESS TOMBSTONES (AS PICTURED AND W/CONTROLLER) -- $200,000 VALUE
(1) KOMA RBA-400K 5-AXIS TOMBSTONE (AS PICTURED) -- $75,000 VALUE
ALL AVAILABLE TOMSTONES WILL BE INCLUDED WITH SALE OF MACHINE
HOURS OF USE (AS OF 12/3/2025):
* POWER ON: 19,394 HOURS
* CUTTING: 1,950 HOURS
MACHINE WAS COMPLETELY UNDER-UTILIZED, PURCHASED FOR AN R&D VENTURE THAT DID NOT DEVELOP.
** MACHINE WAS INSTALLED AS-NEW IN 2017 IN CURRENT LOCATION. ONE OWNER MACHINE. NEVER SAW FULL SHIFT WORK
NOTE: MACHINE IS IMPECCABLE MAINTAINED AND EQUIPPED. COMING OUT OF A SINGLE SHIFT SHOP AND IS AVAILABLE IMMEDIATELY. FRONT PLEXIGLASS PANE IS PRESENT, JUST REMOVED FOR ACCESS TO PALLET POOL.
