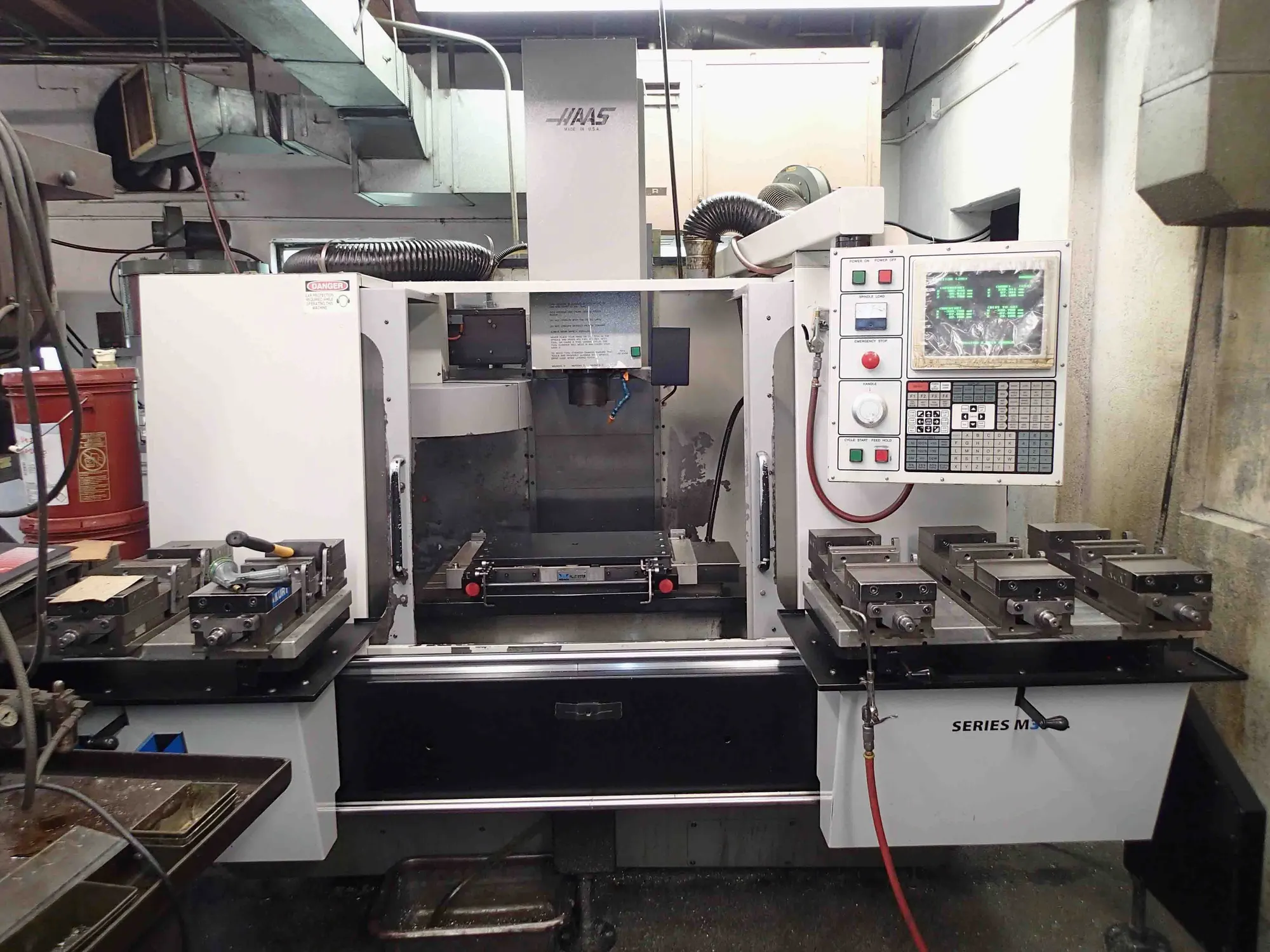

HAAS VF-2 Vertical Machining Center, 1994. Used condition. Specs: 30"x16"x20" travel, 30 HP, 8100 RPM, 20-tool ATC, CT/BT 40 taper, 14"x36" table. Ideal for precision and reliability in machining tasks.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 20 | 20 |
| Taper | Cat 40 | Cat 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 4 | 4 |
| Control | CNC (Haas CNC Control) | CNC (Haas CNC Control) |
| Dimensions | 88 x 93 x 106 | 88 x 93 x 106 |
| Weight | 8500 | 8500 |
X-Axis Travel: 30”
Y-Axis Travel: 16”
Z-Axis Travel: 20
Table Size: 36” x 14”
Spindle Speed: 0 - 7,500 RPM
Spindle Taper: Cat 40
Spindle Motor: 15 HP
Auto Tool Changer: 20 Positions
Electrical Requirements: 208/230 V; 3 Ph; 50/60 Hz
Full Load: 25 Amps
Approx. Machine Dimensions (L x W x H) : 88” x 93” x 106”
Approx. Machine Weight: 8,500 LBS
Equipped With:
Haas CNC Control
4th Axis Drive & Wiring
20 Position Automatic Tool Changer
Programmable Coolant Nozzle
1x Kurt Double Lock Vise
Available Mist Collector
Not Sold with Pallet Changer
