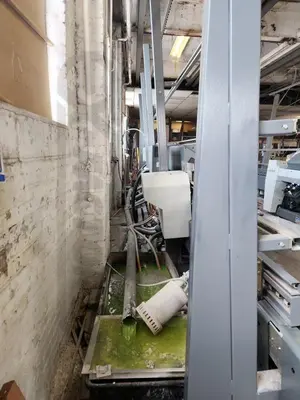

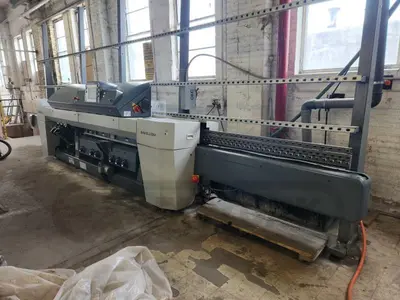

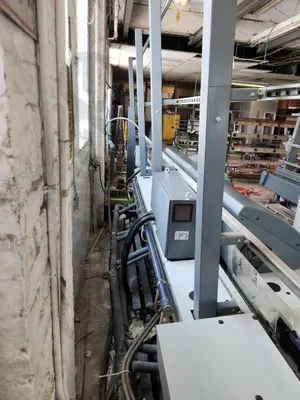

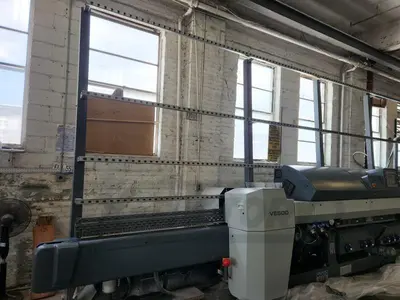

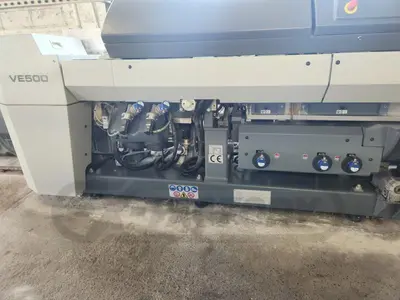

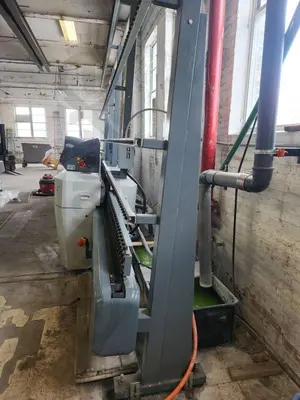

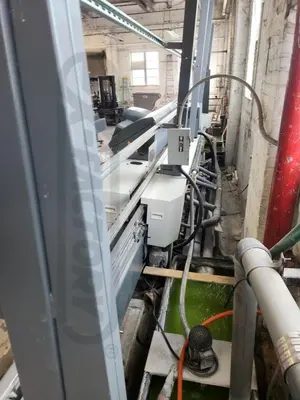

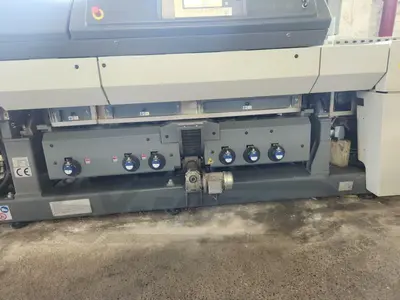

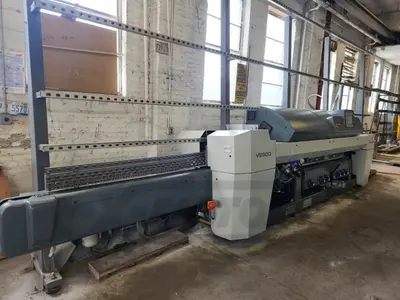

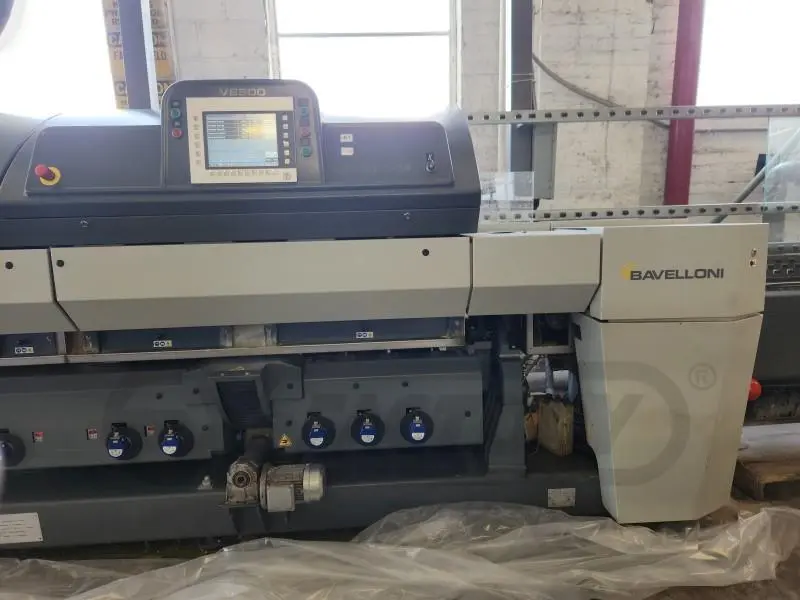

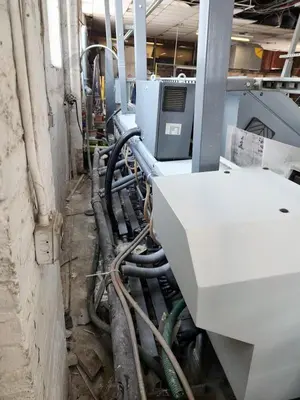

BAVELLONI VE500 V10 SCS EDGE GRINDER (VERTICAL)
New: 2020 (Excellent Condition)
10-Spindle Vertical Edge Grinding Machine. Spindle calibrated electronically. There is no need for manual adjustment.
Wheel Configuration:
(2) Diamond wheels (150 mm) for flat edge
(2) Polishing wheels (150 mm) for arrises
(2) Polishing wheels (150 mm) for arrises
(3) Polishing wheel
(1) Polishing wheel with Cerium
Specifications:
Right to left operation
Glass thickness: 3 -51 mm (1/8" - 2 1/64")
Min. glass height 50 mm (2")
Feed: 0.5 - 5.5m/Min
Max. capacity: 350 kg (235 lbs)
Chamfer: 0 - 45
Approximate Dimensions: 350" x 91" x 63"
Approximate Weight: 7341 lbs
