Equipped With
KNWP 30 M
KNWP 15 M
KNWP 50 M
Working Area
Pressure force
33 t
16.5 t
55 t
Operating pressure (max.)
5,431.7 psi
5,541.9 psi
5,792.75 psi
Piston travel per quick stroke
0.15 in
0.31 in
0.1 in
Piston travel per work stroke
0.02 in
0.04 in
0.01 in
Total piston stroke
6.3 in
Flow rate quick stroke
8.32 gal/min
Throat width
22 in
22 in
30 in
Flow rate work stroke
1 gal/min
Measures and Weights
Hydraulic tank volume
0 gal
Oil tank capacity
0.44 gal
0.44 gal
0.66 gal
Weight
330 lbs
257 lbs
550 lbs

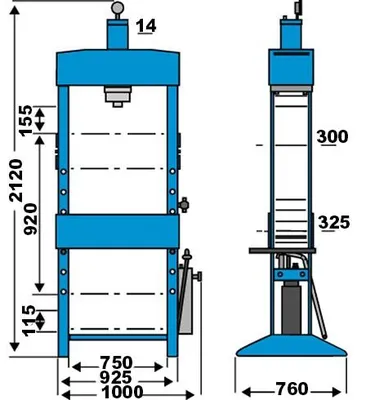

Overall dimensions (length x width x height)
33x26x81 in
33x24x76 in
44x30x84 in
For any repair and installation work, e.g.:
Removal and installation of press-fit bearings, bolts and bushings
Straightening beams, shafts, axles and sections
Pressing and crimping
Load tests and weld sample testing
Straightening of workpieces
Material testing
Rigid machine frame featuring a carefully machined weldment structure
Hydraulic pump can be operated by hand or foot control
2-step hydraulics - with change-over switch for changing between quick-stroke and work stroke
The support table features a rigid design, but is easy to handle with adjustable height
Includes multi-function die for straightening flat material and corrugation
Table lifting system
