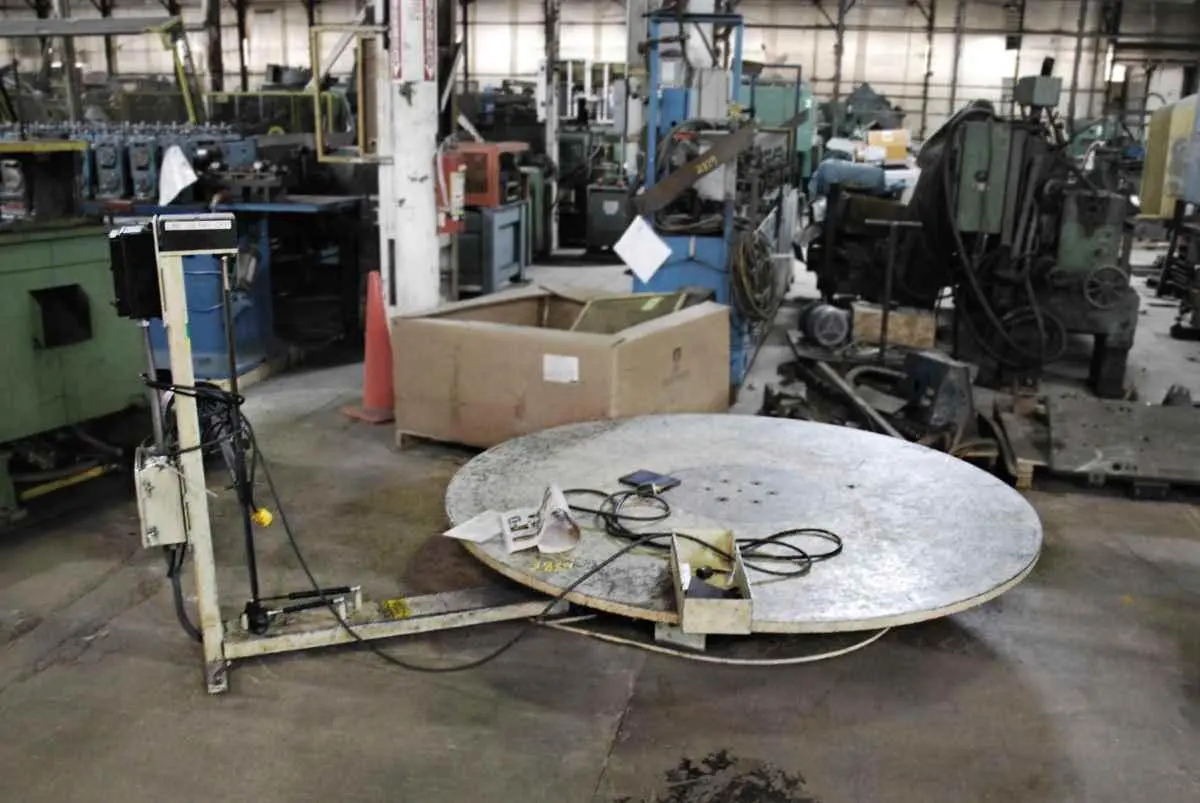

(8,000 Lb. COILMATE Model 8060 Pallet-Type Uncoiler

Equipped With
(8,000 Lb. COILMATE Model 8060 Pallet-Type Uncoiler
New 2011
SPECIFICATIONS:
Maximum Coil Weight: 8,000 Lbs.
Platform Size: 72"
Maximum Coil O.D.: 60"
Maximum Stack Height: 37"
Strip Width: 1/2" - 6"
Elec: 110/1/60
Stock Thickness Capacity: .062"

EQUIPPED WITH:
Powered Coil Retention Arm
Clockwise/Counter Clockwise Payout Direction
DC Motor Speed Control
Roller Stand Strip Support
Loop Control Arm
OVERALL DIMENSIONS: 9' L x 6' W x 4' High
APPROXIMATE WEIGHT: 2,000 Lbs.
