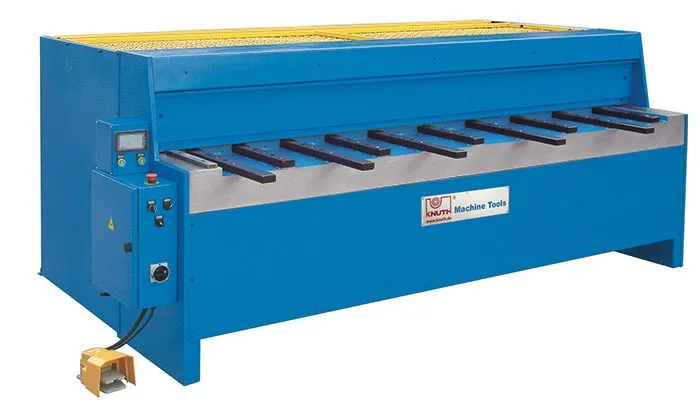

NEW KNUTH KMT B NC

Equipped With

KMT B 1304 NC
KMT B 2552 NC
KMT B 2554 NC
Working Area
Structural steel plate thickness
0.03 - 0.16 in
0.03 - 0.08 in
0.03 - 0.16 in
Working length
51 in
100 in
100 in
Cutting angle
2.4 deg
1.6 deg
1.8 deg
Strokes per minute (automatic mode)
30
Knife length
53 in
101 in
101 in
Work table height
33 in
Support arms
23.62 in
Number of support arms
5 positions
Back Gauge
Rear stop
25 in
Drive Capacity
Motor rating main drive
5.4 Hp
5.4 Hp
10.1 Hp
Measures and Weights
Overall dimensions (length x width x height)
69x72x47 in
119x71x49 in
121x74x50 in
Weight
2,981 lbs
4,180 lbs
5,500 lbs
Machine Frame and Drive System
The machine frame is made of a robust steel weldment treated with stress-relief annealing
An automatic hold-down fixates the plate during cutting
The double-edged upper and lower knives can be rotated and reused
Material Support
The rigid side angle stop simplifies alignment of the plate to the cut line
Operation and Ergonomics
The PLC back-gauge control with 4.3" touchscreen features a user-friendly graphic interface for quick and easy programming
The mobile control unit features a foot switch, so the operator has both hands free
Back Gauge
The backgauge is driven by a servo motor, which significantly improves positioning and repeatability accuracy
A plate hold-up fixture prevents any overhang of the plate in front of the back gauge to ensure maximum accuracy and quality of every cut, even in thin plates

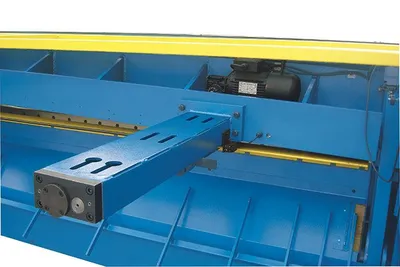

Support arms are positioned via an air cylinder and lowered in sync with the cutting process
PLC control
work lamp
Safety guard with power off after open door
Back gauge with 4.3" touchscreen
foot pedal
cut-line lighting
lateral stop
Support arms with material support rollers
powered rear stop
hold-down
Pneumatic sheet hold-up device
Safety cover for work area near back gauge
operator manual
