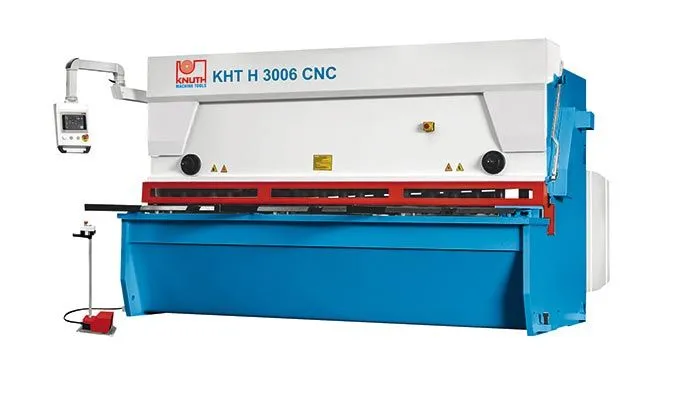

NEW KNUTH KHT H CNC

Equipped With

KHT H 3006 CNC
KHT H 3010 CNC
KHT H 3013 CNC
KHT H 3016 CNC
KHT H 4006 CNC
KHT H 4010 CNC
KHT H 4013 CNC
KHT H 6006 CNC
KHT H 4016 CNC
Working Area
Plate thickness (max.)
0.24 in
0.39 in
0.51 in
0.63 in
0.24 in
0.39 in
0.51 in
0.24 in
0.63 in
Working length
121 in
121 in
121 in
121 in
161 in
161 in
161 in
240 in
161 in
Throat
6 in
Cutting angle
0.3 - 2 deg
0.3 - 2 deg
0.3 - 2.3 deg
0.3 - 2.5 deg
0.3 - 2 deg
0.3 - 2 deg
0.3 - 2.3 deg
0.3 - 1.5 deg
0.3 - 2.5 deg
Strokes per minute
20
19
19
14
17
18
16
13
13
Hold-down
13 positions
16 positions
16 positions
18 positions
20 positions
20 positions
19 positions
29 positions
20 positions
Hold-down capacity
17.6 t
22 t
27.5 t
44 t
27.5 t
27.5 t
55 t
38.5 t
55 t
Table size
131x19x31 in
132x20x32 in
132x22x33 in
133x22x33 in
172x20x32 in
172x21x32 in
173x23x33 in
247x23x35 in
173x24x35 in
Back Gauge
Rear stop
39 in
Feed speed X-axis
3.9 in/min
Front Support Arms
Number of support arms
3 positions
3 positions
3 positions
3 positions
4 positions
4 positions
4 positions
6 positions
4 positions
Length of support arms
35 in
Drive Capacity
Motor rating main drive
14.8 Hp
29.5 Hp
40.2 Hp
49.6 Hp
14.8 Hp
29.5 Hp
40.2 Hp
29.5 Hp
49.6 Hp
Hydraulic tank volume
40 gal
66 gal
66 gal
92 gal
40 gal
66 gal
66 gal
66 gal
92 gal
Measures and Weights
Overall dimensions (length x width x height)
154x82x77 in
155x84x84 in
156x85x89 in
158x87x96 in
195x83x82 in
196x86x91 in
197x87x94 in
272x86x93 in
197x89x104 in
Weight
15,400 lbs
20,900 lbs
25,300 lbs
33,660 lbs
21,340 lbs
30,250 lbs
36,080 lbs
48,400 lbs
50,160 lbs
These guided hydraulic plate shears with CNC-controlled back gauge, kerf and cutting angle combine high quality and reliability with a user-friendly design
Machine Frame
The very rigid and heavy machine frame has been welded to tight tolerances and annealed
The machine frame has been machined on a state-of-the-art 5-axis milling machine in one single setup to ensure more precise cuts and extended life
All components subject to tensile loads have been carefully constructed and designed with large radii to permanently eliminate the risk of cracking
The table features a bottom cutter mount and cutter bar and has been designed for minimal torsion and optimum load distribution
All components were treated in a modern paint and drying system and feature two coats of paint, each coat with a minimum thickness of 60 micron
Material Support
The large work table features roller balls and a rigid lateral angular stop for easy handling and safe plate alignment
Long, sturdy support arms safely hold large plates
Hydraulics
Polished pistons on both hydraulic cylinders feature superior 2 micron surface grades, ensuring a long seal life
Cylinder bodies are forged from high-strength SAE 1040 material
The entire hydraulic system is reliable, low-maintenance and easy to service
During the cut, hydraulically regulated hold-downs ensure steady fixation of the sheet metal plate close to the cut-line
Back Gauge and Control
Length, thickness, and strength of the plate material can easily be entered by the user into the programmable control unit, which then automatically will select the appropriate positions for kerf, cutting angle and cutting length
The back gauge system is very robust and perfectly suited for rough production environments
Linear guides and preloaded ball screws are mounted in a protective enclosure
Equipment
Electric components made by renowned manufacturers ensure problem-free operation and high availability
Upper and lower knives suitable for stainless steel
The machine is operated via a foot pedal with emergency stop switch, and the pedal can be located wherever it is most convenient
Safety
Safety concept based on the latest CE standards
The rear-mounted light barrier system protects the work area
CybTouch 8 G is a powerful control that perfectly complements premium plate shears
Like all CybTouch products, this control features a user-friendly design allowing users to get started quickly
The intuitive HMI shows only the required information and supports a high degree of automation, while it is extremely easy to operate
Easy Operation
High-contrast touchscreen with vivid colors
Simple page layout, large buttons, and an organized display that shows all the information the operator needs
Intuitive and user-friendly interface
Quick machine set-up via the EasyCut page
Context-sensitive help and warning popups
Improved cutting performance
Automatically calculates material specifications:
Automatic kerf
Automatic cutting angle
Automatic cutting length
Automatic back gauge correction
Automatic return
Anti-Twist management
2 / 3 plate support positions
Hold-down pressure management
System pressure management
Offset plate position allowing the plate to be cut in the center
Powerful
Long cut sequences and programs can be stored
Easy communication via a wireless laptop connection
Available in more than 10 languages
cybelec Touch 8 controller
CNC-controlled kerf adjustment
CNC-controlled cutting length adjustment
CNC controlled cutting angle adjustment
hand safety guard
cut-line lighting
material support table with rollers
motorized rear stop 39 inch
side stop with scale and T-slot plus tilt stop (L = 39 inch)
2 support arms
safety system for work area, back gauging
foot pedal with E-stop switch
standard upper and lower knives
operator instructions
