Equipped With
KMT B 1253
KMT B 1254
KMT B 2052
KMT B 2053
Working Area
Structural steel plate thickness
0.03 - 0.12 in
0.03 - 0.16 in
0.03 - 0.08 in
0.03 - 0.12 in
Working length
49 in
49 in
81 in
81 in
Cutting angle
2 deg
2.4 deg
2 deg
2 deg
Strokes per minute (automatic mode)
30
Knife length
53 in
53 in
83 in
83 in
Work table height
33 in
Support arms
23.62 in
Number of support arms
2 positions
2 positions
3 positions
3 positions
Back Gauge
Rear stop
25 in
Drive Capacity
Motor rating main drive
4 Hp
5.4 Hp
4 Hp
5.4 Hp
Measures and Weights
Overall dimensions (length x width x height)
67x59x44 in
68x63x47 in
99x66x44 in
99x63x47 in
Weight
1,870 lbs
2,607 lbs
2,860 lbs
3,344 lbs

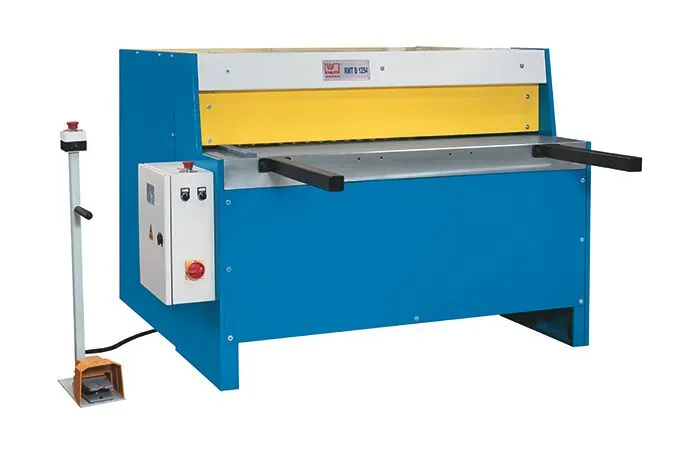

Machine Frame and Drive System
The machine frame is made of a rigid, solid steel weldment
A rubber-coated hold-down automatically fixates the plate
A small knife angle ensures cut accuracy
Material Support
The rigid side angle stop simplifies alignment of the plate to the cut line
Rugged support arms ensure a good hold of large plates on the support table
Operation and Ergonomics
Illuminated cut line ensures good visibility of marking
The mobile control unit features a foot switch, so the operator has both hands free

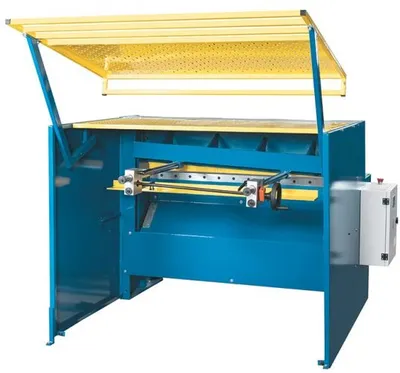

Back Gauge
Manual back gauge with counter
The back gauge is robust and rigid and can handle any challenges in everyday operations
The work area at the back gauge is covered with safety panels
foot pedal
side angle stop
support arms
automatic hold-down
cut-line lighting
manual rear stop
operator instructions
