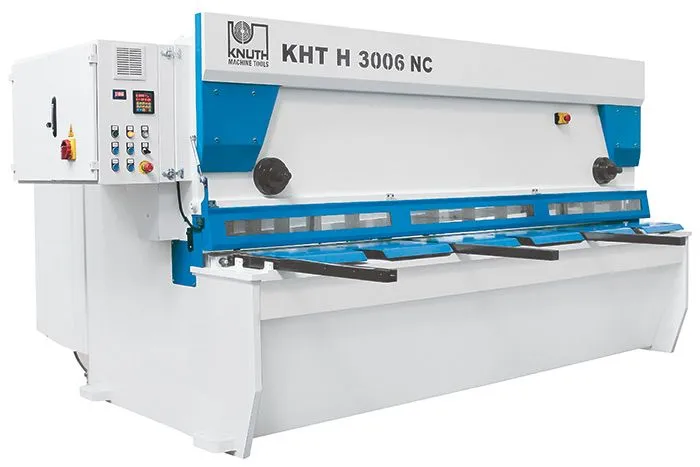

NEW KNUTH KHT H NC

Equipped With

KHT H 3006 NC
KHT H 2006 NC
KHT H 2506 NC
KHT H 3008 NC
KHT H 3010 NC
KHT H 3013 NC
KHT H 4006 NC
KHT H 4010 NC
KHT H 4013 NC
Working Area
Plate thickness (max.)
0.24 in
0.24 in
0.24 in
0.31 in
0.39 in
0.51 in
0.24 in
0.39 in
0.51 in
Working length
121 in
82 in
102 in
121 in
121 in
121 in
161 in
161 in
161 in
Cutting angle
0.3 - 2 deg
0.3 - 2 deg
0.3 - 2 deg
0.3 - 2 deg
0.3 - 2 deg
0.3 - 2.3 deg
0.3 - 2 deg
0.3 - 2 deg
0.3 - 2.3 deg
Hold-down
13 positions
10 positions
12 positions
16 positions
16 positions
16 positions
20 positions
20 positions
19 positions
Hold-down capacity
17.6 t
16.5 t
16.5 t
22 t
22 t
41.8 t
27.5 t
27.5 t
49.5 t
Throat
6 in
Strokes per minute
7
Table size
173x23x34 in
Back Gauge
Rear stop
39 in
Feed speed X-axis
3.9 in/min
Front Support Arms
Number of support arms
3 positions
2 positions
3 positions
3 positions
3 positions
3 positions
4 positions
4 positions
4 positions
Length of support arms
35 in
Drive Capacity
Motor rating main drive
14.8 Hp
14.8 Hp
14.8 Hp
29.5 Hp
29.5 Hp
40.2 Hp
14.8 Hp
29.5 Hp
40.2 Hp
Hydraulic tank volume
40 gal
40 gal
40 gal
66 gal
66 gal
66 gal
40 gal
66 gal
66 gal
Measures and Weights
Overall dimensions (length x width x height)
154x82x77 in
111x83x71 in
134x82x74 in
155x84x84 in
154x84x89 in
156x85x89 in
195x83x82 in
196x86x91 in
197x87x94 in
Weight
15,400 lbs
10,780 lbs
12,540 lbs
18,700 lbs
20,900 lbs
25,300 lbs
21,340 lbs
30,250 lbs
36,080 lbs
The new KHT H NC series features high machining quality and reliability, is easy to handle and provides superior cutting performance
Machine Frame
The machine frame is made of a high-precision, stress-relieved steel weldment and features rigid sliding block guides
Motorized adjustments of kerf and knife angle allow for ideal settings optimized for the sheet metal plate to be processed
All components were treated in a modern paint and drying system and feature two coats of paint, each coat with a minimum thickness of 60 micron
Material Support
The large work table features roller balls and a rigid lateral angular stop for easy handling and safe plate alignment
Long, sturdy support arms safely hold large plates
Hydraulics
Polished pistons on both hydraulic cylinders feature superior 2 micron surface grades, ensuring a long seal life
Cylinder bodies are forged from high-strength SAE 1040 material
During the cut, hydraulically regulated hold-downs ensure steady fixation of the sheet metal plate close to the cut-line
Back Gauge and Control
Linear guides and preloaded ball screws are mounted in a protective enclosure
The user-friendly NC positions the back gauge precisely for single cuts or for program runs
Equipment
Upper and lower knives suitable for stainless steel
The machine is operated via a foot pedal with emergency stop switch, and the pedal can be located wherever it is most convenient
Safety
Safety concept based on the latest CE standards
BRL 401.2 NC control unit
motorized kerf adjustment
motorized back gauge
Motorized cut angle adjustment
Foldable finger guard
Shadow graph display of cut line
support arms, 39"
foot pedal
standard upper and lower knife
operator instructions
