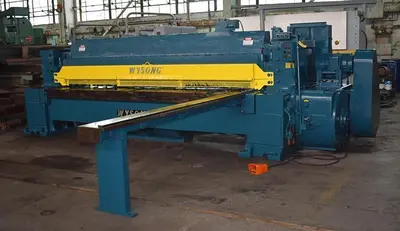

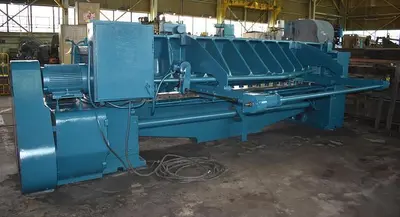

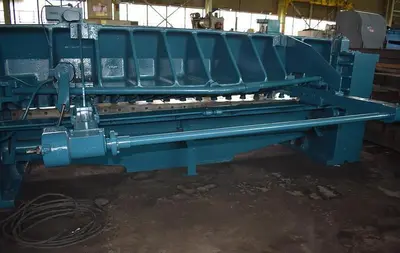

12' x 3/8" WYSONG MODEL 1238 MECHANICAL POWER SQUARING SHEAR

Equipped With
12' x 3/8" WYSONG MODEL 1238 MECHANICAL POWER SQUARING SHEAR
Serial NO. P35-150
EQUIPPED WITH:
48" Power Back Gauge (Front Operated)
(19) Power Hold-Downs
Double End Frame Design
Ball Transfers In Table
(2) 96" Ball Transfer Feed Tables
8' Squaring Arm - Foot Switch
Bijur Automatic Lubrication System
Extra Blade
CATALOG SPECIFICATIONS:
Shearing Capacity, Nominal 12' x 3/8"
Shearing Capacity, Stainless Steel 12' x 9/32"
Rake, Taper Per Foot 5/16"
Strokes Per Minute 40 SPM
Main Motor, Horsepower 20 HP
Floor Space Required, L x D 240" x 127"
Overall Height 68"
Weight, Approximately 37000 LBS
