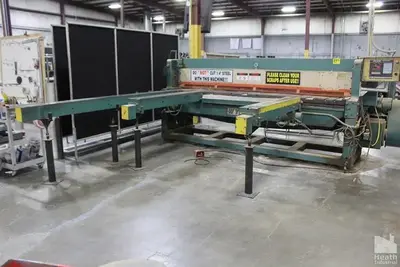

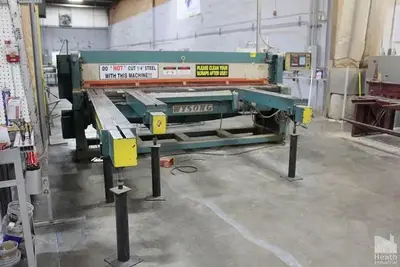

10' x 10 GA WYSONG "1010" CNC MECHANICAL POWER SQUARING SHEAR w/POWER FRONT GAUGING & SQUARING ARM

Equipped With
10' x 10 GA WYSONG "1010" CNC MECHANICAL POWER SQUARING SHEAR w/POWER FRONT GAUGING & SQUARING ARM
Equipped With:

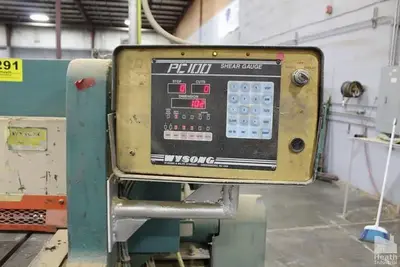

Wysong "PC100" Programmable CNC Control
36" CNC Controlled Front Operated Power Back Gauge

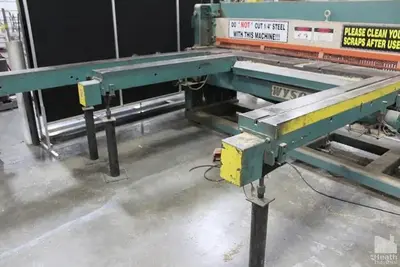

72" CNC Controlled Power Precision Squaring Arm
72" CNC Controlled Power Precision Front Gauging
(16) Spring-Activated Automatic Holddowns
Adjustable Rake
Bijur Lubrication System
No Pit Required
Shearing Capacity, Mild Steel 10' x 10 GA
Shearing Capacity, Stainless Steel 10' x 12 GA
Length Between Housings 10'
Rake, Taper Per Foot 3/8"
Strokes Per Minute 60 SPM
Main Motor, Horsepower/RPM 10 HP/1800 RPM

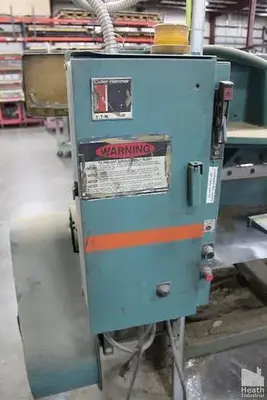

Electrical System 220-440/3/60
Overall Dimensions, L x D 168' x 103"
Overall Height 60"
Weight, Approximately 13500 LBS
