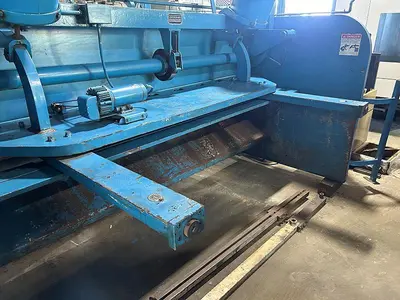

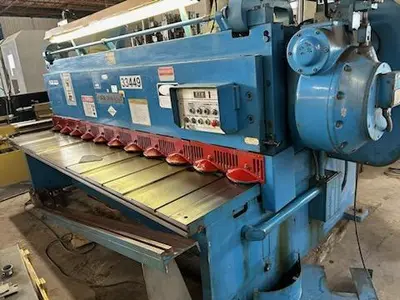

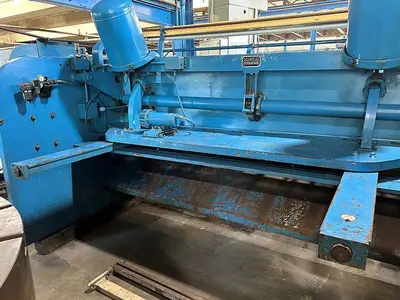

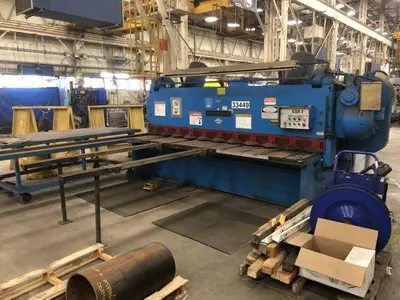

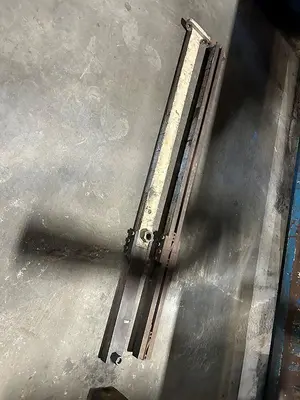

3/8" x 10' CINCINNATI MODEL 2510 POWER SQUARING SHEAR

Equipped With
3/8" x 10' CINCINNATI MODEL 2510 POWER SQUARING SHEAR
New 1977 - Refurbished in 1992
MAX. THICKNESS ....(MILD STEEL)............... 3/8"
MAX. THICKNESS     (STAINLESS)                 1/4"
LENGTH ....................................... 10'
APPROX. SHIPPING WEIGHT ...................... 26,400 LBS
MOTOR ........................................ 10 HP
STROKES PER MINUTE ........................... 50
TO BLADE EDGE ................................ 7/8"
STANDARD DIST. UNDER HOLDDOWNS ............... 11/16"
RAKE (SHEAR ANGLE) TAPER PER FOOT ............ 9/32"
RAM ADJUSTMENT ............................... 11/16"
STANDARD GAPS (THROAT CLEARANCE) ............. 18"

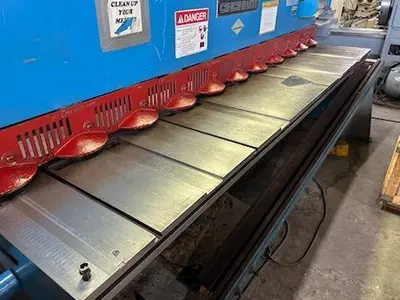

NUMBER OF HOLDDOWNS .......................... 11

EQUIPPED WITH:
- ARMY REFURBISHED IN 1992
- 36" FRONT OPERATED POWERED BACK GAUGE
- SQUARING ARM

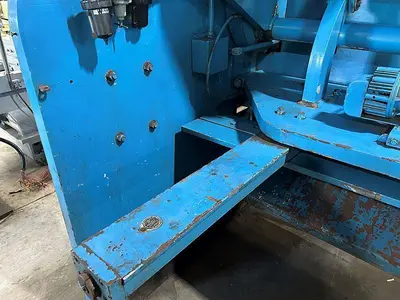

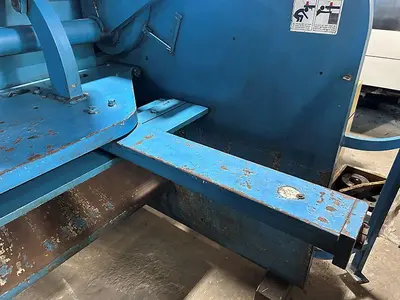

- 2 SUPPORT ARMS
- FOOT SWITCH
