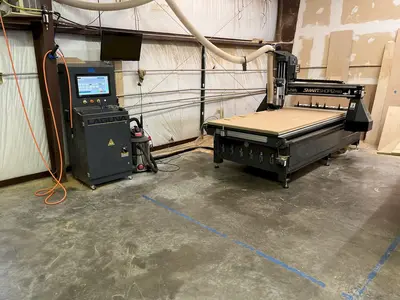

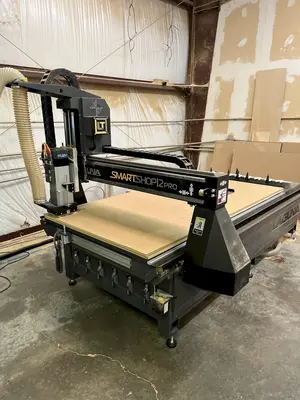

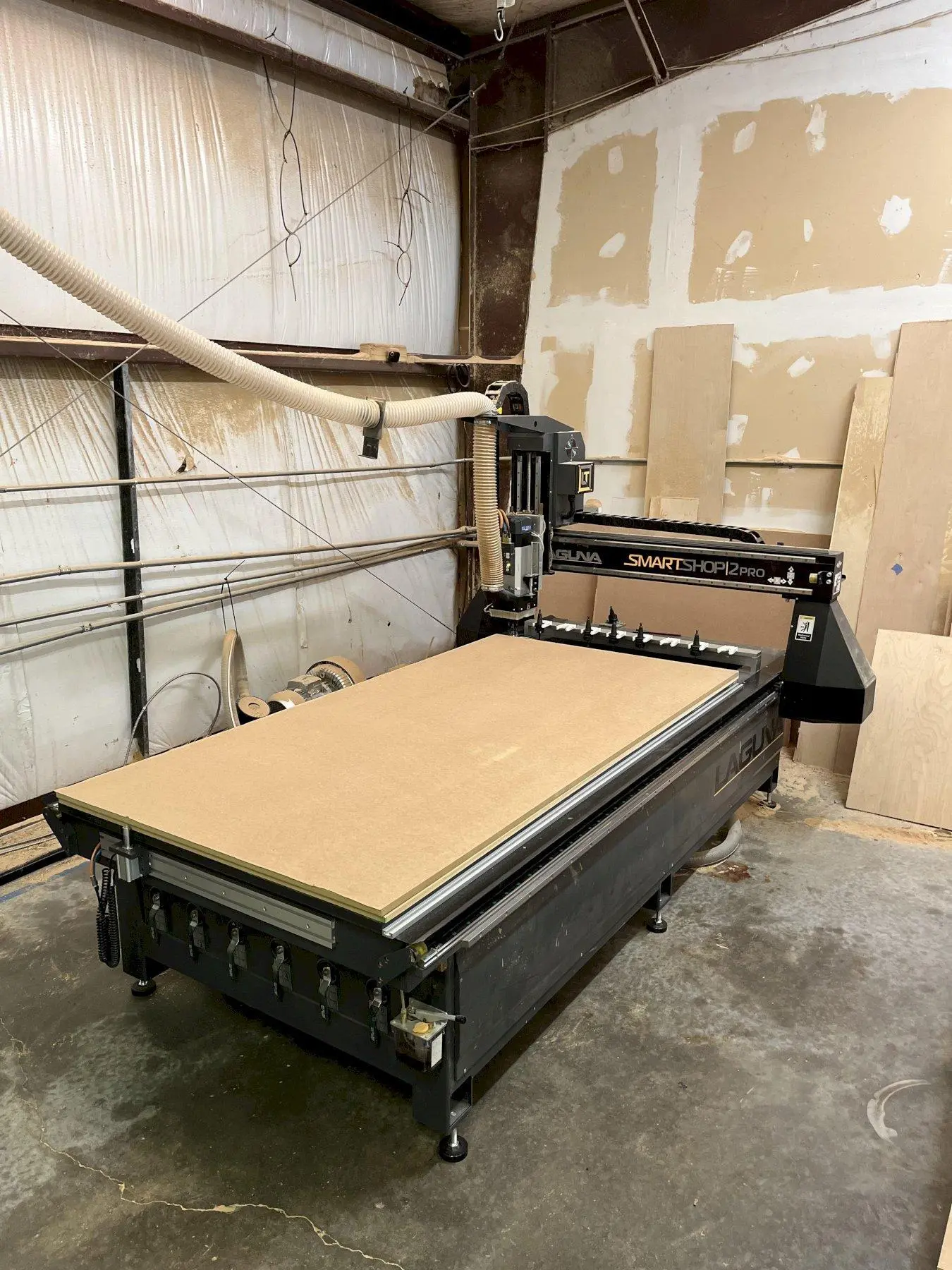

4' X 8' LAGUNA SMARTSHOP II PRO CNC ROUTER

Equipped With
4' X 8' LAGUNA SMARTSHOP II PRO CNC ROUTER WITH CFLUX 3 DUST COLLECTOR
New: 2024
Specifications:
Cutting Area: 48″ x 96″
Z-Axis Clearance: 12″ | Z Travel: 13″
Spindle: 12 HP HSD ISO-30, 5,000–24,000 RPM
Tool Changer: 8-position automatic carousel (ISO-30)
Drive System: Yaskawa AC Servo Motors (X/Y rack & pinion; Z-axis ball screw)

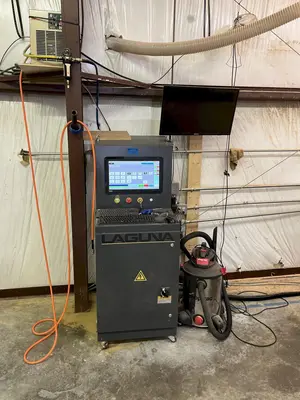

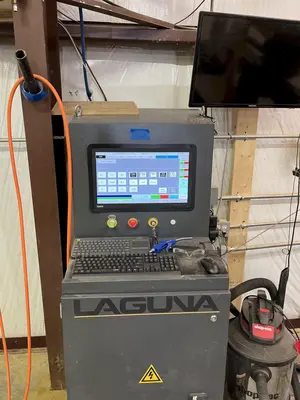

Controller: Syntec Industrial CNC (USB & Ethernet compatible)
Rapid Traverse Speed: Up to 1,800 IPM
Vacuum Table: 6-zone hold-down system
Construction: Heavy one-piece welded steel frame
Electrical: 220V / 3-Phase
Weight: Approx. 4,000 lbs

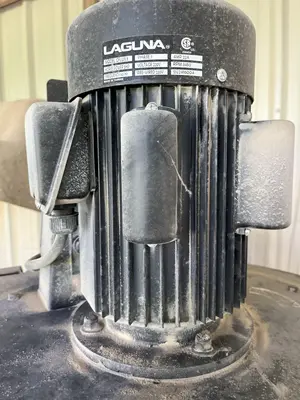

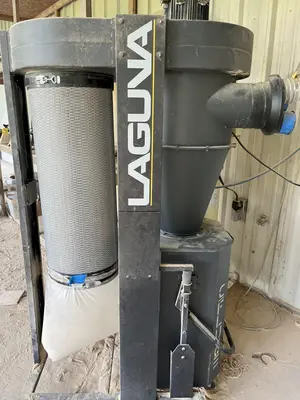

Equipped with: CFLUX 3 Dust Collector
