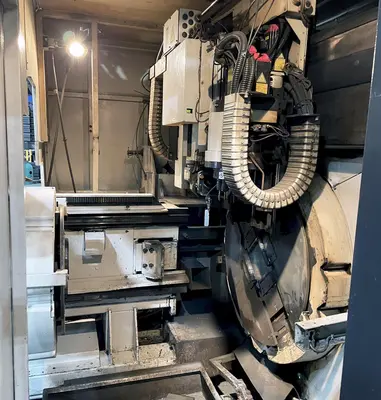

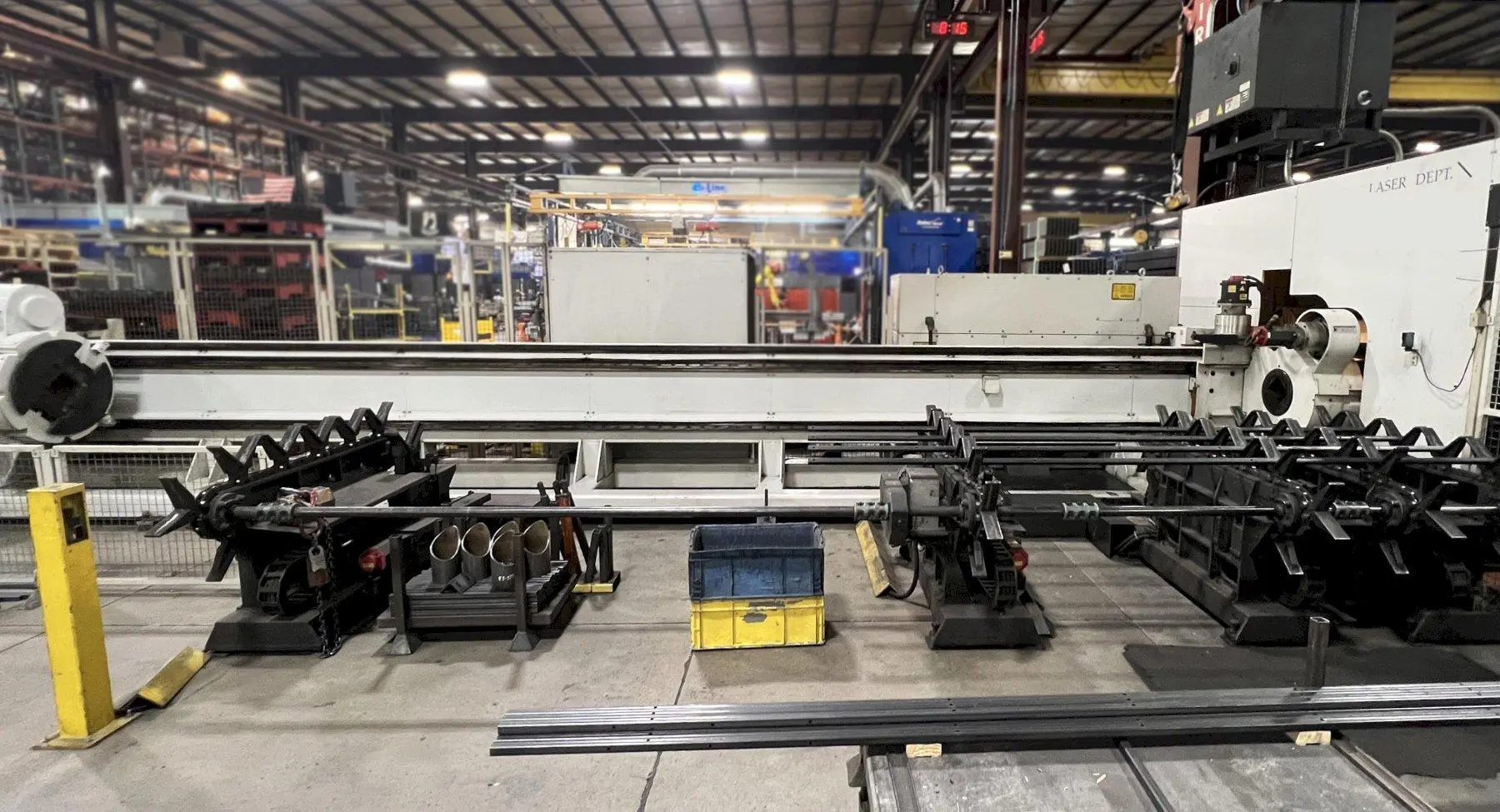

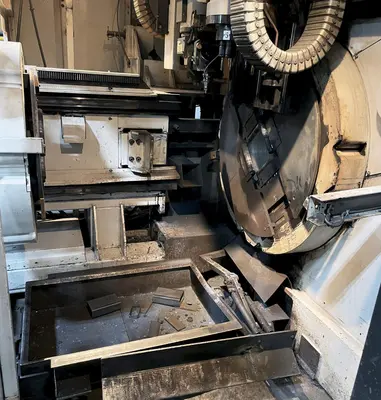

USED 2010 MAZAK 3D FABRI GEAR 150 TUBE

Equipped With
2010 MAZAK 3D FABRI GEAR 150 CNC TUBE CO2 LASER
New: 2010
Specifications:
X-Travel: 352.50"
Y-Travel: 38.78"
Z-Travel: 14.57"
Watts: 2,500 watts
Additional Machine Specifications:

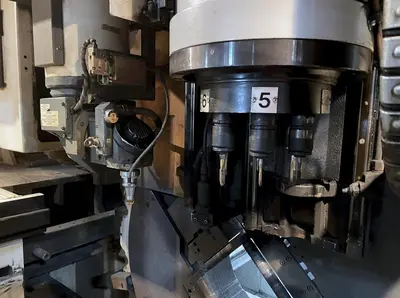

Cutting Head: 3D
Laser Type: CO2
Other Profile Capabilities: I/H, Beam, Angle, C
Max Square Tube Size: 6"
Max Round Pipe Diameter: 6"
Maximum Material Length: 26'

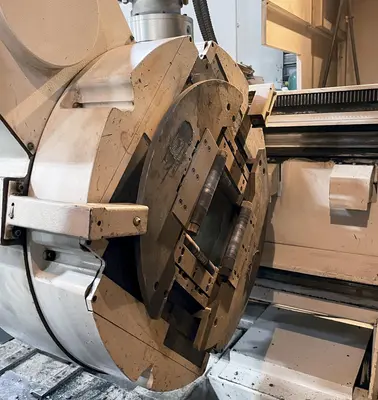

X chuck left/right: 352.6"
U chuck left/right: 345.6"
V chuck left/right: 91.14"
Y head back/forth: 38.78"
Z head up/down: 14.57"
A head rotation: ± 360 degrees
B head swing: ±135 degrees

Transportation Arm Stroke: X,Y,Z,A: 26.97"
U,V,W,B: 9.84"
Voltage: 220/440V 3Phase

Equipped With:
4kw Panasonic resonator

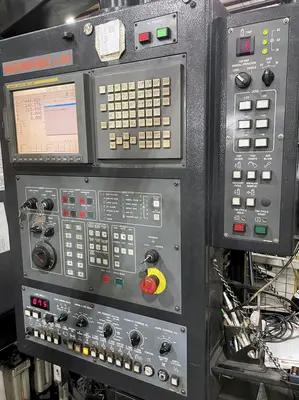

Fanuc L-64 CNC Control
