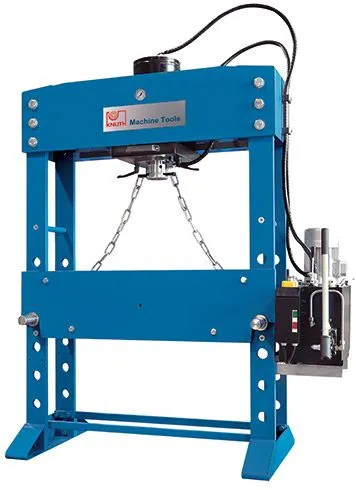

NEW KNUTH KNWP HM

Equipped With

KNWP 60 HM
KNWP 100 HM
KNWP 160 HM
KNWP 100 HM L
KNWP 200 HM
KNWP 200 HM
Working Area
Pressure force
66 t
110 t
176 t
110 t
176 t
220 t
Operating pressure (max.)
3,755.5 psi
3,741 psi
3,697.5 psi
3,741 psi
3,697.5 psi
3,523.5 psi
Stroke
15 in
15 in
15.7 in
15 in
15.7 in
15.7 in
Forward motion speed
0.34 in/s
0.3 in/s
0.29 in/s
0.3 in/s
0.29 in/s
0.23 in/s
Press speed
0.08 in/s
0.1 in/s
0.09 in/s
0.1 in/s
0.09 in/s
0.07 in/s
Return speed
0.42 in/s
0.36 in/s
0.37 in/s
0.36 in/s
0.37 in/s
0.28 in/s
Drive Capacity
Motor rating hydraulic pump
2 Hp
3 Hp
4 Hp
3 Hp
4 Hp
4 Hp
Measures and Weights
Hydraulic tank volume
11 gal
12 gal
15 gal
12 gal
15 gal
17 gal
Weight
1,188 lbs
2,134 lbs
2,629 lbs
2,519 lbs
3,146 lbs
3,718 lbs
Dimensions
A
83 in
84 in
87 in
82 in
89 in
89 in
B
39 in
53 in
56 in
69 in
71 in
63 in
C
27 in
30 in
32 in
30 in
32 in
34 in
D
30 in
43 in
43 in
59 in
59 in
51 in
E
10 in
12 in
15 in
12 in
15 in
16 in
F
52 in
66 in
68 in
81 in
84 in
76 in
G
6 in
H
8 in
7 in
7 in
5 in
7 in
7 in
I
30 in
J
32 in
34 in
37 in
34 in
37 in
38 in
K
8 in
10 in
13 in
10 in
13 in
14 in
Ideal for repair and assembly work
Truing of axles, supports, shafts and much more
For removal and press fitting bearings and bushings

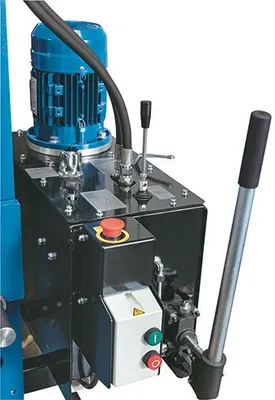

2-step hydraulic unit
Supply voltage 220V, 3 ph, 60 Hz

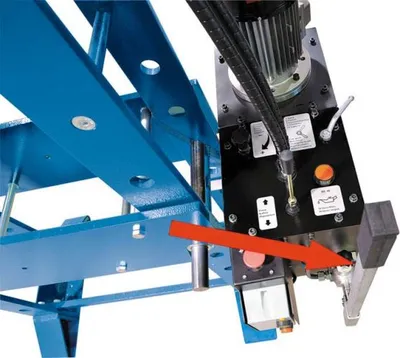

Work cylinder with smooth horizontal adjustment
Press frame features high rigidity, functionality and excellent finish
